Tensioner And Tensioner Spring Assembly Note

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata, 2004 Mazda MX-5 Miata, and 2003 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the tensioner spring so that the chamfer of dumping rubber faces the right side as shown.
  2. Push the tensioner in the direction of the arrow and hand-tighten the lock bolt.

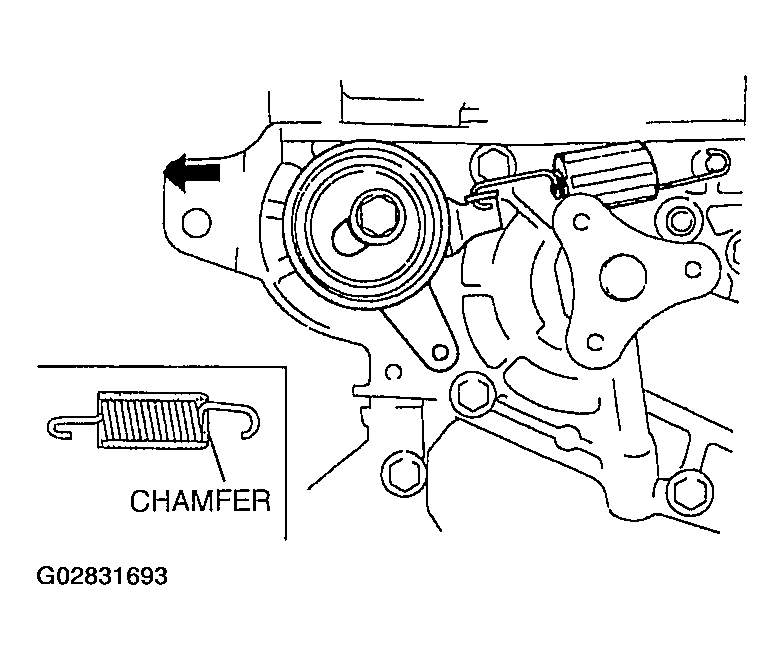

    Fig 1: Pushing Tensioner Outward
    G02831693Courtesy of MAZDA MOTORS CORP.
