Pulley Boss Disassembly Note

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata, 2004 Mazda MX-5 Miata, and 2003 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the crankshaft clockwise and align the timing marks of the pulleys.
    NOTE:
    • For the crankshaft side, face the locating pin on the pulley boss straight up.

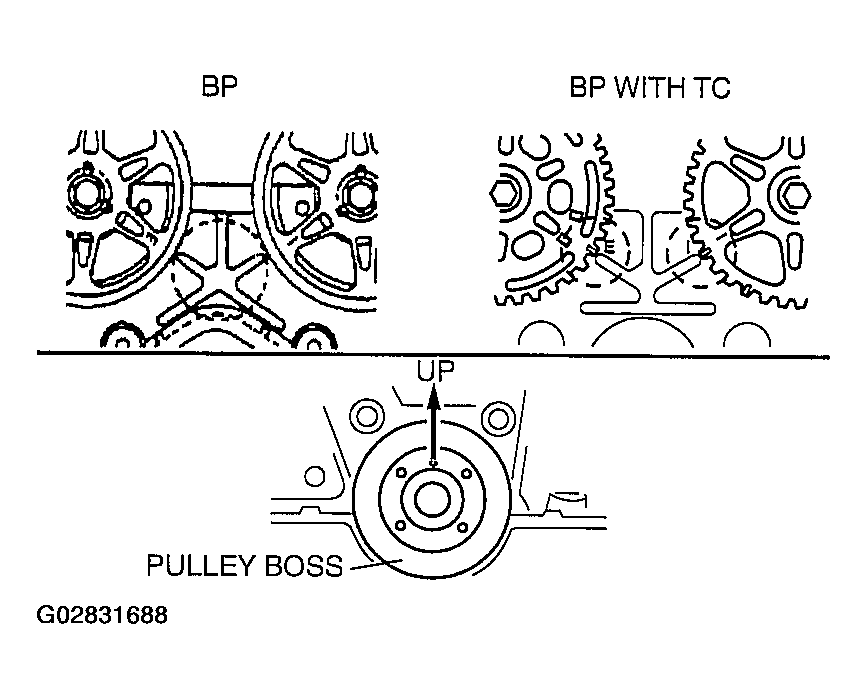

    Fig 1: Aligning Timing Marks
    G02831688Courtesy of MAZDA MOTORS CORP.
  2. Hold the crankshaft using the SST  .
    Fig 2: Holding Crankshaft
    G02831689Courtesy of MAZDA MOTORS CORP.
