Timing Belt Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata, 2004 Mazda MX-5 Miata, and 2003 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble in the order indicated in the figure.

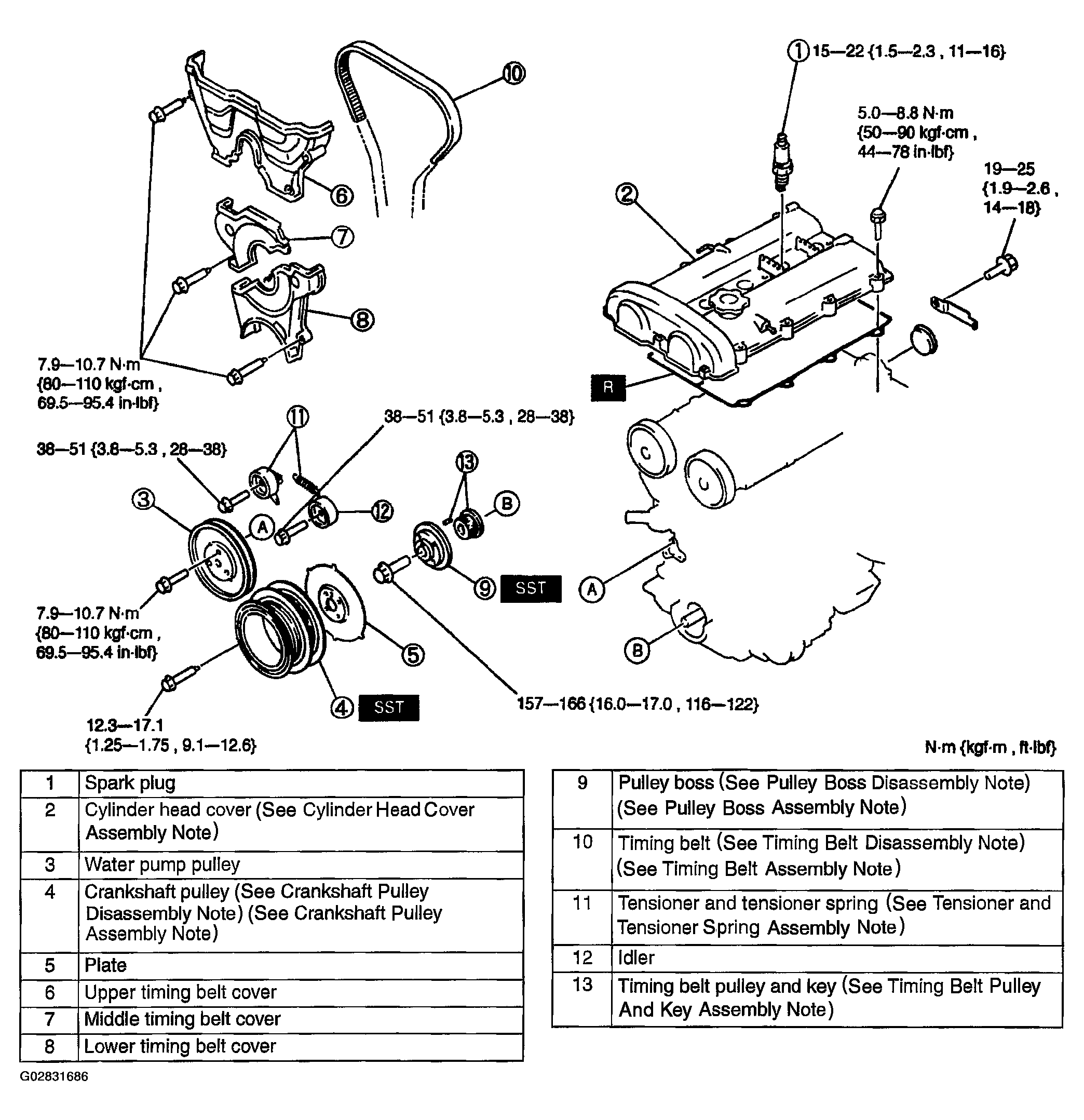

    2. Fig 1: Disassembling/Assembling Timing Belt
    G02831686Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
