Valve Seal Assembly Note

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata, 2004 Mazda MX-5 Miata, and 2003 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The intake and exhaust valve seals are different as shown.

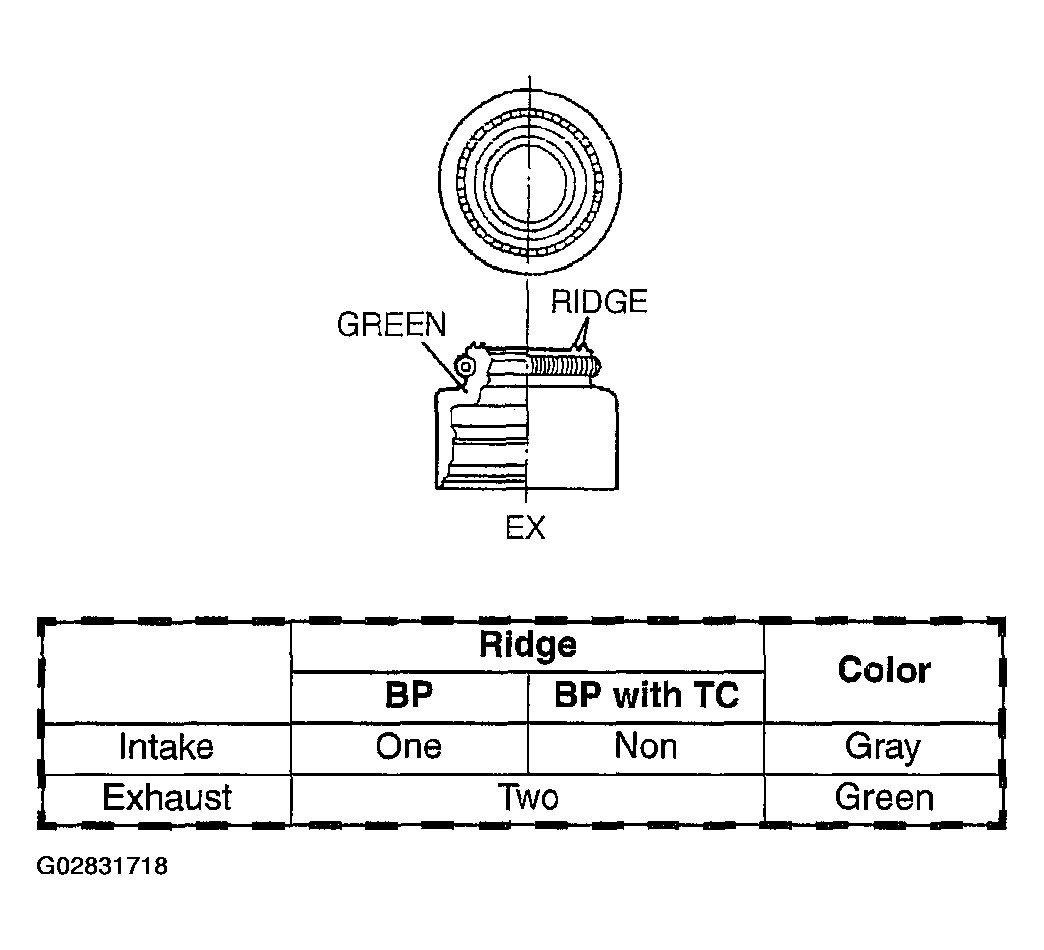

Fig 1: Identifying Intake & Exhaust Valve Seals

Courtesy of MAZDA MOTORS CORP.

Assemble the SST so that depth L is as specified.
Depth L
1. 19.9 mm {0.783 in}

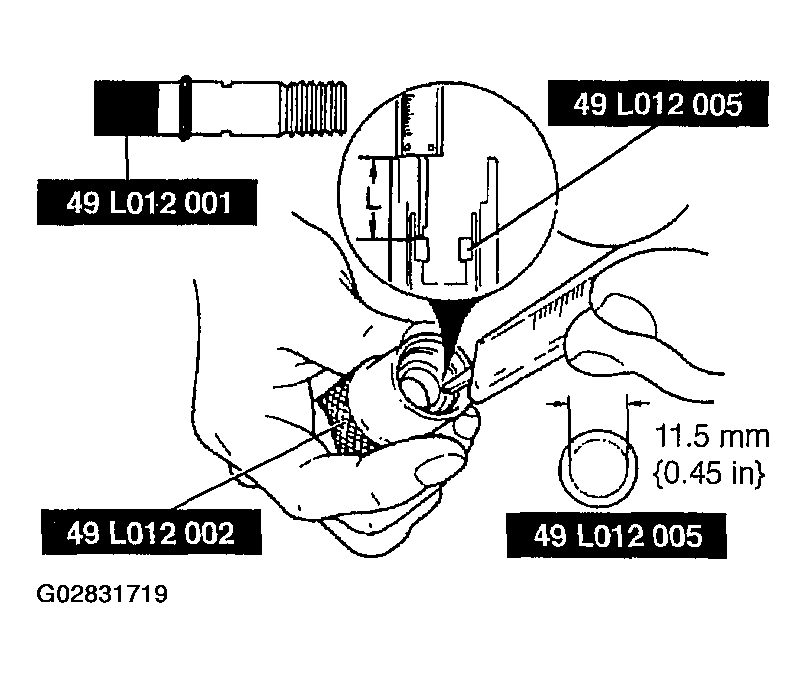

  Fig 2: Adjusting SST For Depth L
  Courtesy of MAZDA MOTORS CORP.
Press the valve seal onto the valve guide by hand.
Tap the SST by using a plastic hammer until its lower end touches the cylinder head.

Fig 3: Installing Valve Seal
Courtesy of MAZDA MOTORS CORP.
