Camshaft Pulley

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata, 2004 Mazda MX-5 Miata, and 2003 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

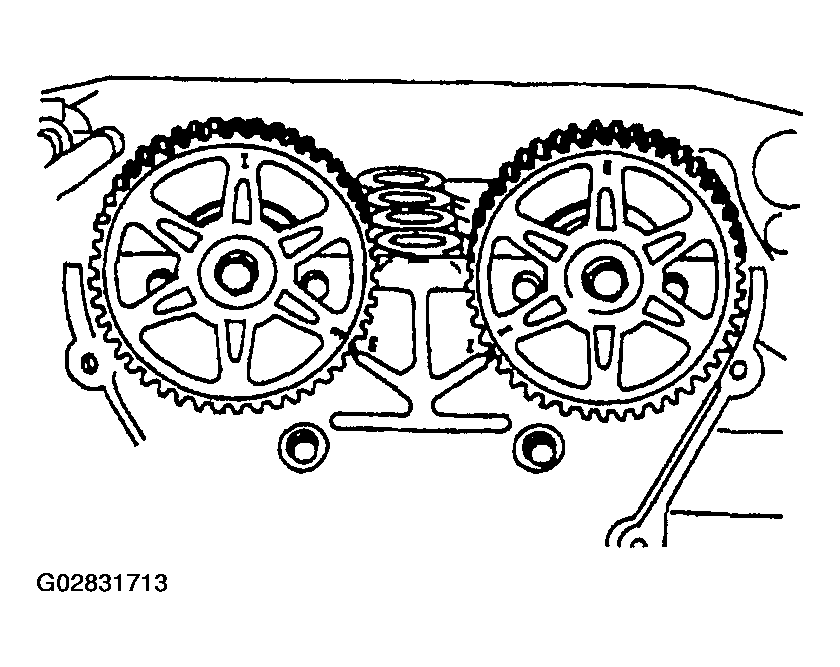

  1. Install the camshaft pulleys with the "I" mark (intake side) or the "E" mark (exhaust side) straight up.
    Fig 1: Identifying Camshaft Pulley Marks
    G02831713Courtesy of MAZDA MOTORS CORP.

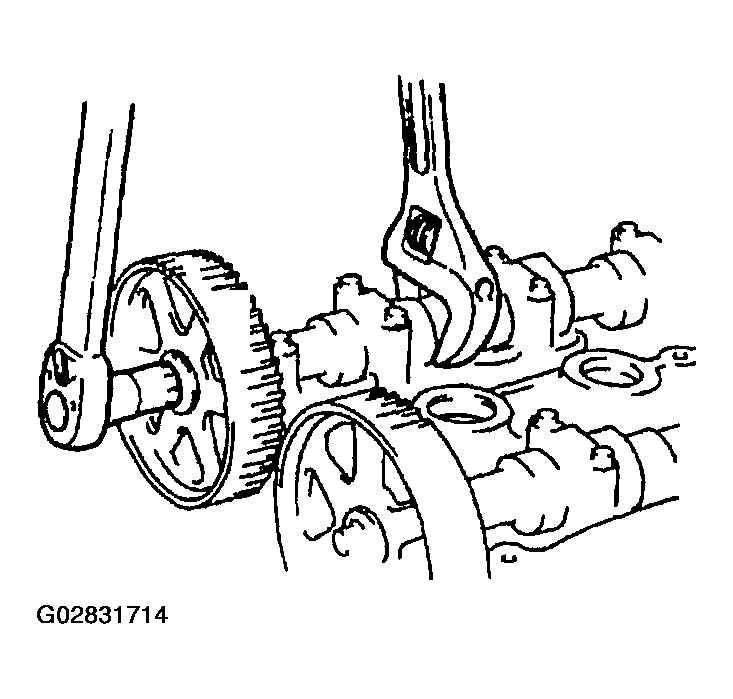

  2. Hold the camshaft by using a wrench on the cast hexagon, and tighten the camshaft pulley lock bolt.
    Fig 2: Holding Camshaft
    G02831714Courtesy of MAZDA MOTORS CORP.
