Main Bearing Cap Disassembly Note

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata, 2004 Mazda MX-5 Miata, and 2003 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Inspect the crankshaft end play. (Refer to ENGINE INSPECTION/REPAIR  , CRANKSHAFT END PLAY INSPECTION  .)
  2. Loosen the main bearing cap bolts in two or three steps in the order shown.

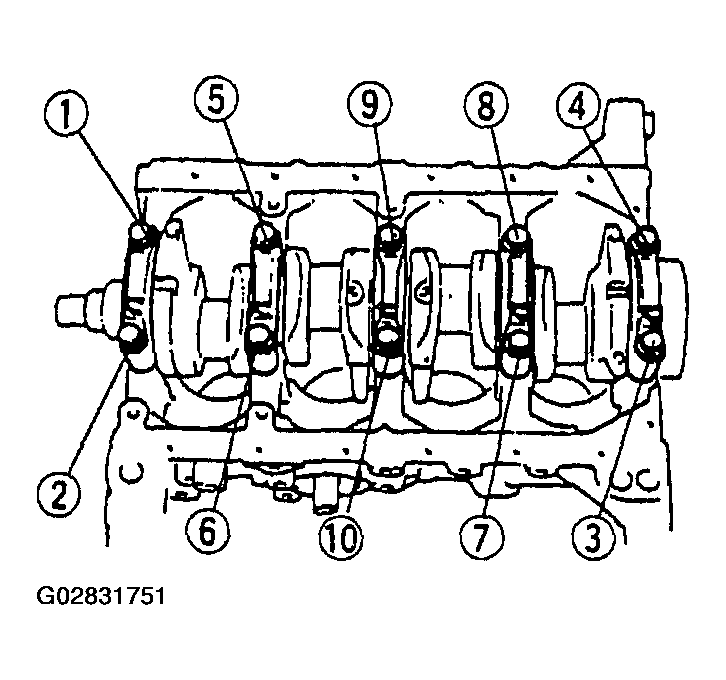

    Fig 1: Main Bearing Cap Bolt Loosening Sequence
    G02831751Courtesy of MAZDA MOTORS CORP.
  3. Remove the main bearing caps.
