Main Bearing Cap Assembly Note

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata, 2004 Mazda MX-5 Miata, and 2003 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the crankshaft and the main bearing caps according to the cap number and "<=" mark which indicates front side.

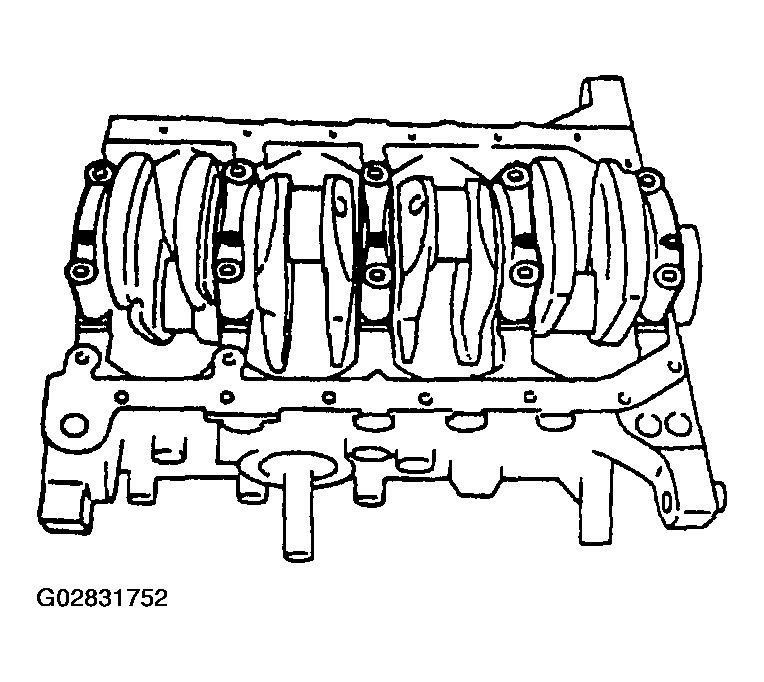

    Fig 1: Installing Crankshaft & Main Bearing Caps
    G02831752Courtesy of MAZDA MOTORS CORP.
  2. Tighten the main bearing cap bolts in two or three steps in the order shown.

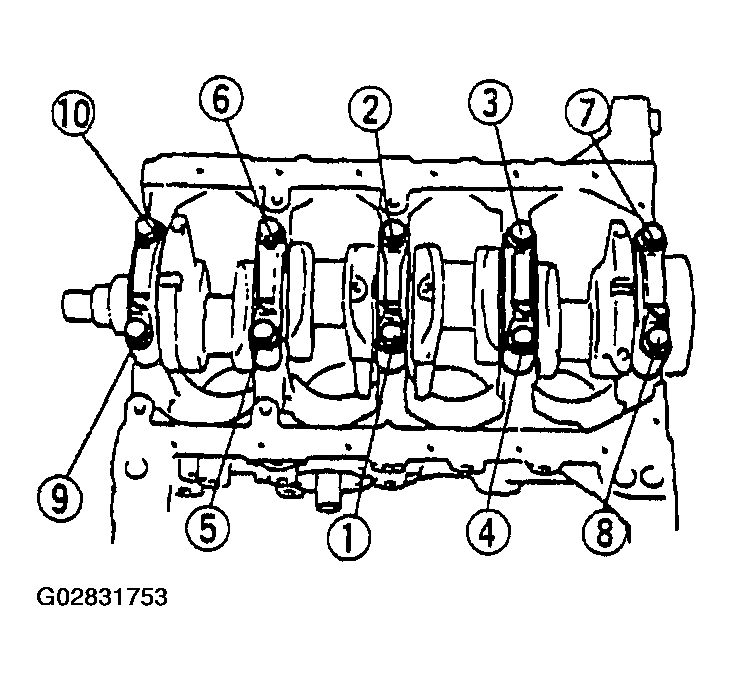

    Fig 2: Main Bearing Cap Bolt Tightening Sequence
    G02831753Courtesy of MAZDA MOTORS CORP.
