Water Pump Assembly Note

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata, 2004 Mazda MX-5 Miata, and 2003 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Verify that the rubber seal is securely fixed onto the water pump.

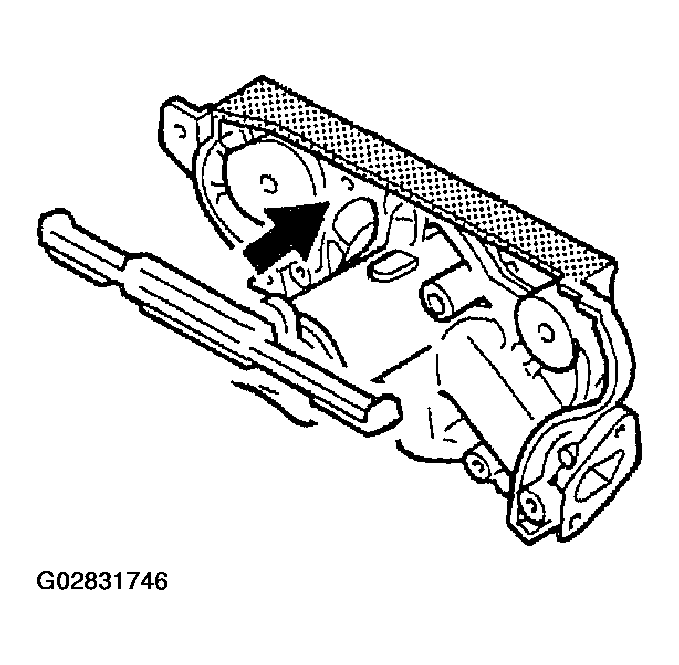

    Fig 1: Installing Rubber Seal To Water Pump
    G02831746Courtesy of MAZDA MOTORS CORP.
  2. If not as specified, remove the rubber seal and reinstall it with the bonding agent.
