Oil Pan Disassembly Note

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata, 2004 Mazda MX-5 Miata, and 2003 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil pan mounting bolts.
  2. CAUTION:
    • Pry tools can easily scratch the cylinder block and oil pan contact surfaces.

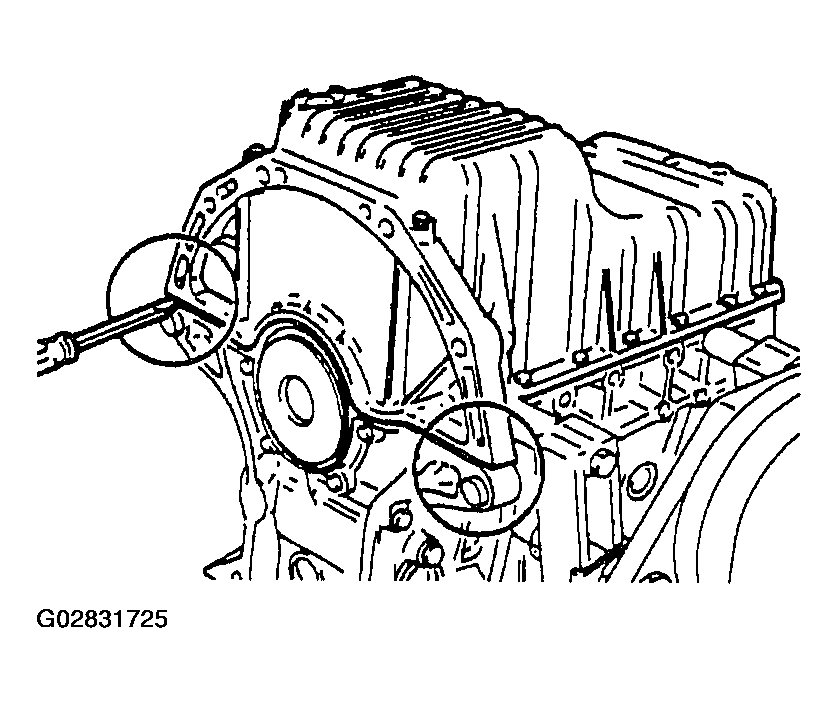

    Fig 1: Identifying Screwdriver Insertion Points
    G02831725Courtesy of MAZDA MOTORS CORP.
  3. Insert a screwdriver only at the points shown.
