Oil Pan Assembly Note (BP With TC)

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata, 2004 Mazda MX-5 Miata, and 2003 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

If the bolts are reused, remove the old sealant from the bolt threads. Tightening a bolt that has old sealant on it can cause bolt hole damage.

Fig 1: Identifying Old Sealant & Possible Damage
Courtesy of MAZDA MOTORS CORP.

Apply silicone sealant to oil pan gasket as shown.
Thickness
1. 2.0 mm {0.079 in}

  Fig 2: Applying Silicone Sealant To Oil Pan Gaskets
  Courtesy of MAZDA MOTORS CORP.

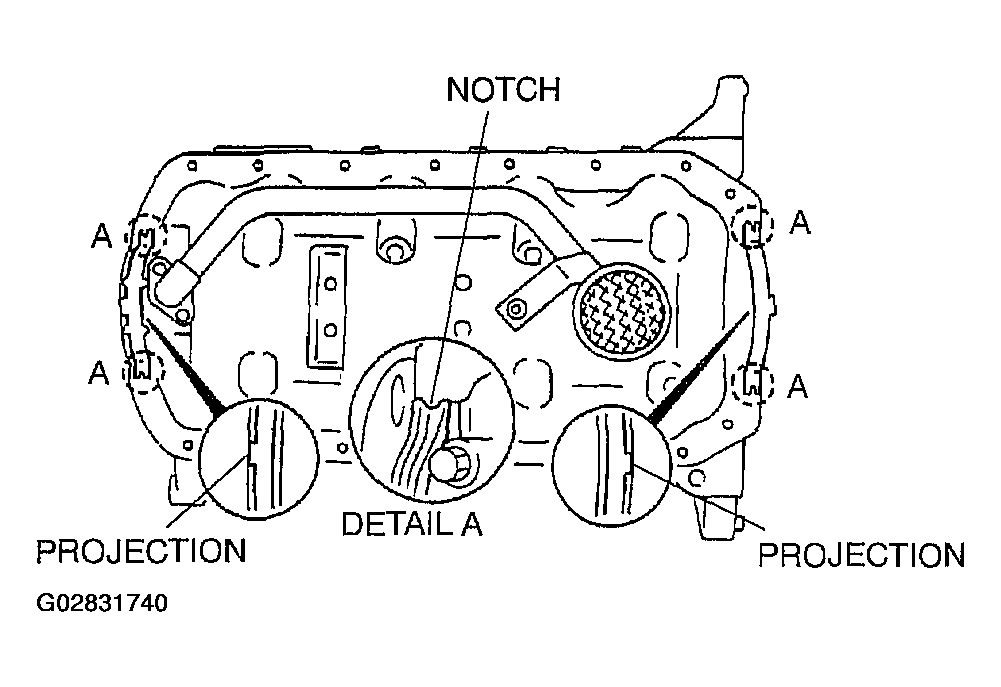

Install oil pan gaskets onto the oil pump body and the rear cover with the projections in the notches as shown.

Fig 3: Identifying Oil Pump/Rear Cover Body Notches
Courtesy of MAZDA MOTORS CORP.
Apply silicone sealant onto the area of oil pan gasket indicated by A and B.
Thickness
1. 2.0 mm {0.079 in}

  Fig 4: Applying Silicone Sealant To Oil Pan Gasket
  Courtesy of MAZDA MOTORS CORP.
Apply silicone sealant to the shaded areas shown.

Fig 5: Applying Silicone Sealant To Shaded Areas
Courtesy of MAZDA MOTORS CORP.
Apply silicone sealant to the oil pan along the inside of the bolt holes, and install within five minutes.
Thickness
1. 2.5-3.5 mm {0.099-0.137 in}

  Fig 6: Applying Silicone Sealant To Oil Pan
  Courtesy of MAZDA MOTORS CORP.
