Oil Baffle Disassembly Note

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata, 2004 Mazda MX-5 Miata, and 2003 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert a screwdriver between the cylinder block and the oil baffle to separate them.
  2. Remove the oil baffle.

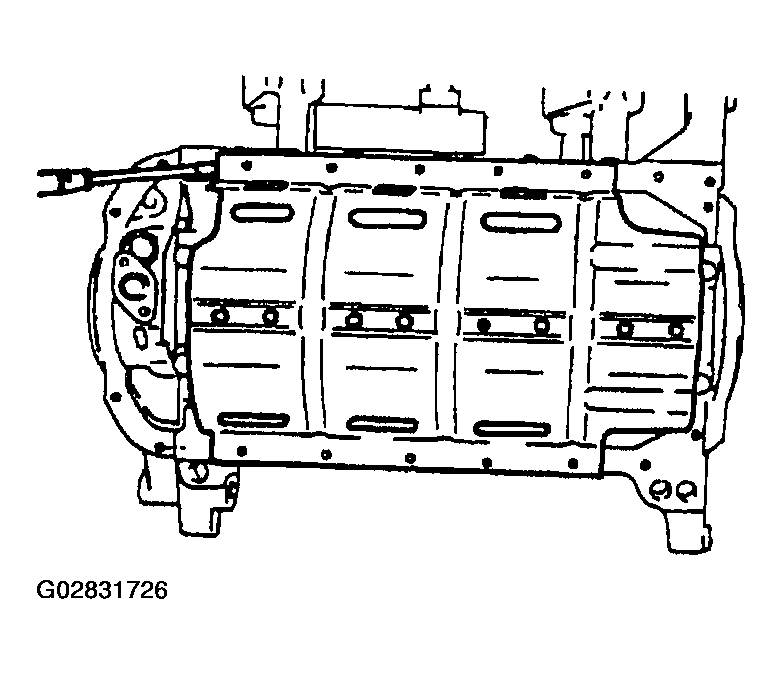

    Fig 1: Removing Oil Baffle
    G02831726Courtesy of MAZDA MOTORS CORP.
