Rotor Housing Inspection
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mazda RX-8, 2010 Mazda RX-8, 2009 Mazda RX-8, 2008 Mazda RX-8, and 2007 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

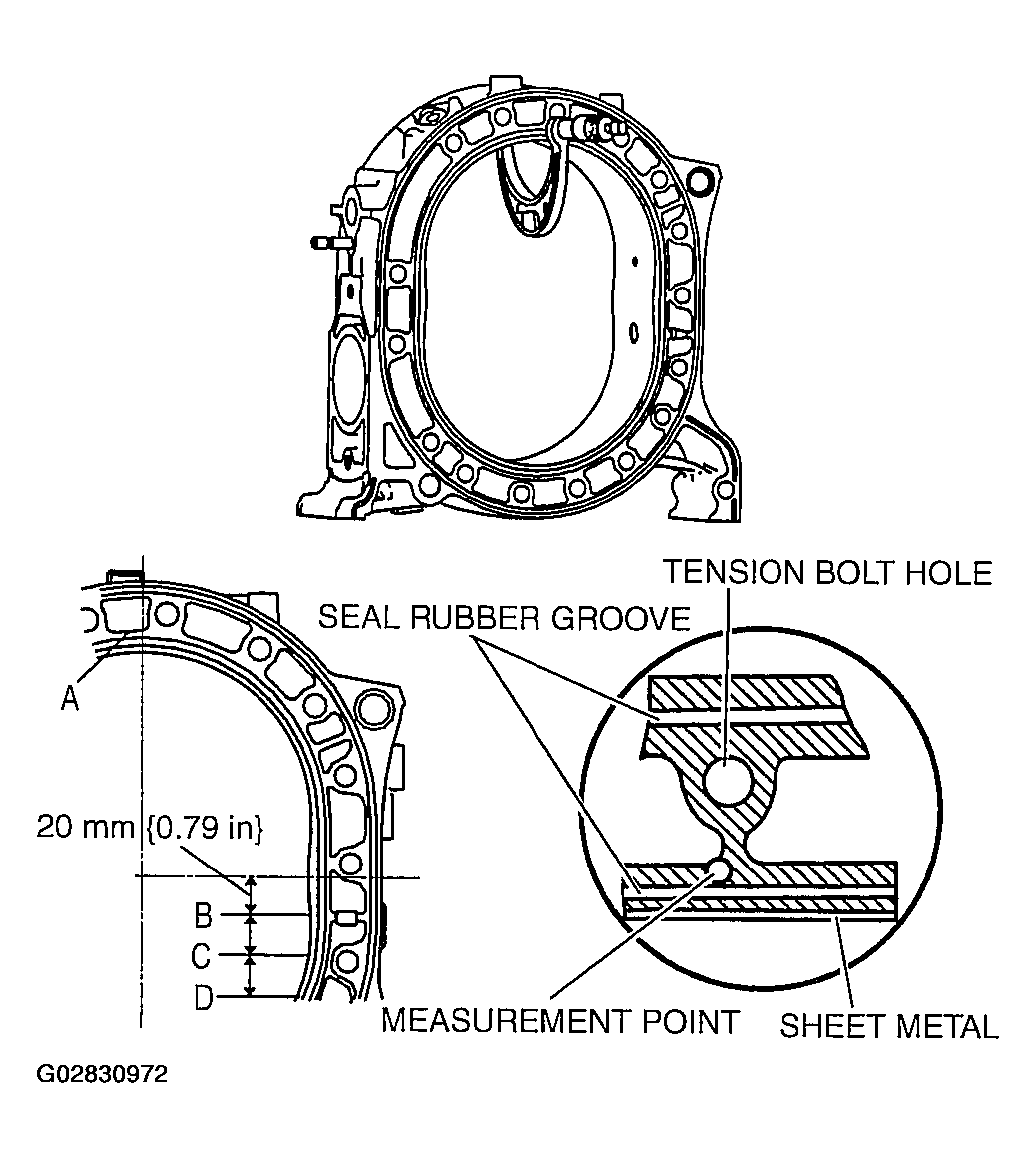

- Measure the width of the rotor housing at four points (A, B, C, and D) as shown in the figure using a micrometer.
- Compute the width variation.
- If it exceeds the maximum, replace the rotor housing.
Width Difference = (width A) - (the smallest of widths B, C, or D)
Maximum Width Difference
- 0.06 mm {0.0024 in}
