Rotor Bearing Replacement: Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mazda RX-8, 2010 Mazda RX-8, 2009 Mazda RX-8, 2008 Mazda RX-8, and 2007 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the SST  handle.
    Fig 1: Remove SST Handle
    G02830994Courtesy of MAZDA MOTORS CORP.
  2. Temporarily assemble so that the rotor bearing tab and the rotor notch are aligned after pressing in the rotor bearing and rotor.

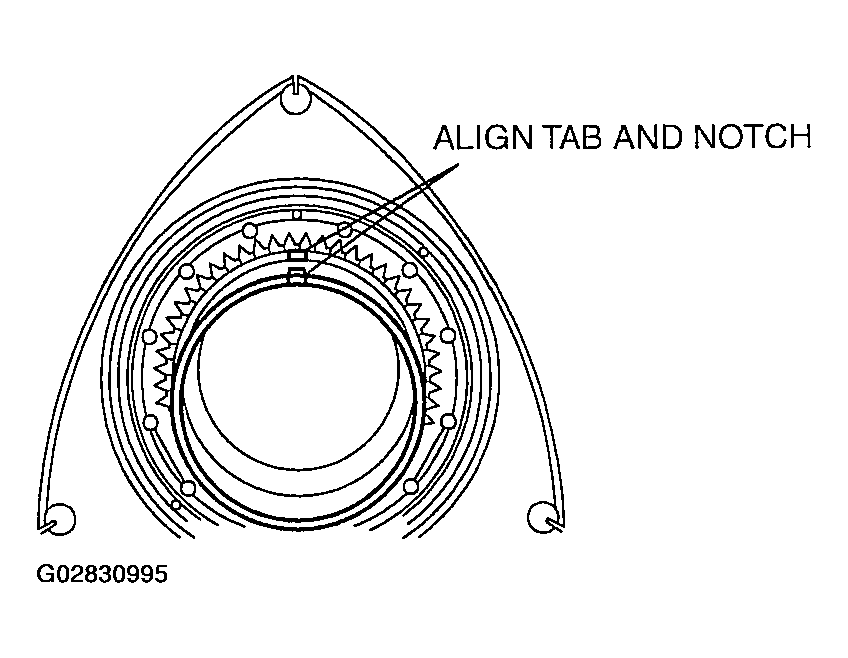

    Fig 2: Aligning Rotor Bearing Tab & Rotor Notch
    G02830995Courtesy of MAZDA MOTORS CORP.
  3. Set the temporarily assembled rotor bearing and rotor on a hydraulic press.
  4. Press in the rotor bearing using the SST  .
    Fig 3: Pressing In Rotor Bearing
    G02830996Courtesy of MAZDA MOTORS CORP.
