Temporarily assemble the stationary gear and the main bearing so that the main bearing screw hole and the stationary gear screw hole are aligned after pressing in the main bearing and rotor.

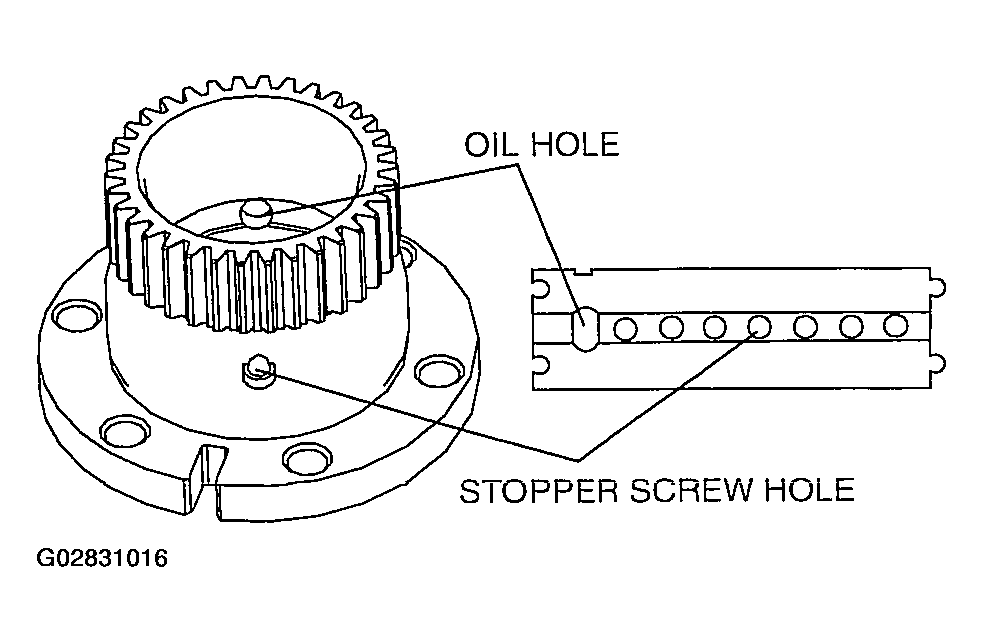

Fig 1: Identifying Oil Hole & Stopper Screw Hole
Courtesy of MAZDA MOTORS CORP.
Remove the SST handle.

Fig 2: Removing SST Handle
Courtesy of MAZDA MOTORS CORP.
Position the gear of the stationary gear downward, and install the main bearing using the SST .
CAUTION:
- Press the main bearing in so that the top of the main bearing is flush with the top of the stationary gear flange.
Fig 3: Pressing Main Bearing
Courtesy of MAZDA MOTORS CORP.
Apply thread-locking compound to the stopper screw and install.
Tightening Torque
1. 3.2-4.7 N.m {33-47 kgf.cm, 29-41 in.lbf}
