Tension Bolt Disassembly Note

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mazda RX-8, 2010 Mazda RX-8, 2009 Mazda RX-8, 2008 Mazda RX-8, and 2007 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the tension bolts in 2-3 passes in the order shown in the figure and remove them.

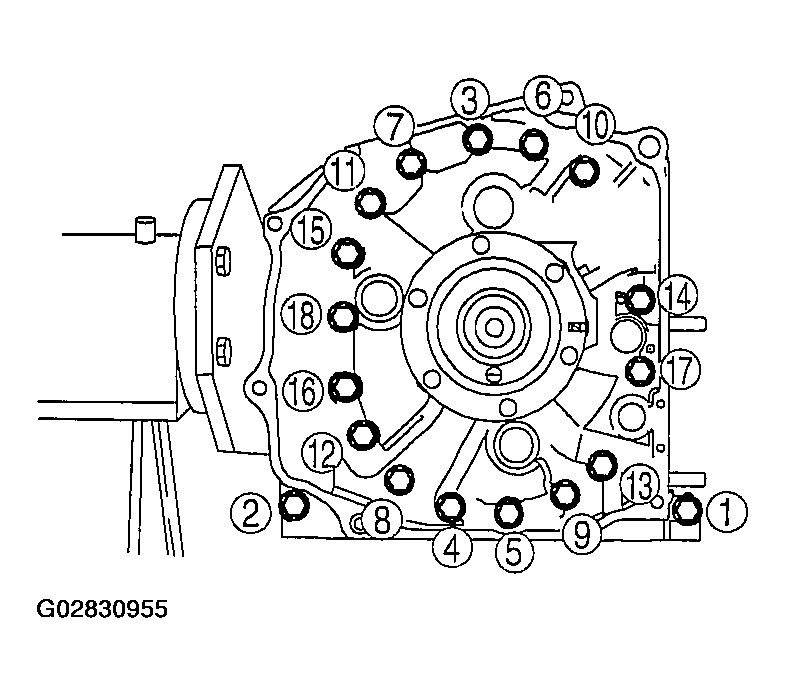

    Fig 1: Tension Bolt Loosening Sequence
    G02830955Courtesy of MAZDA MOTORS CORP.
