Rear Housing Disassembly Note

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mazda RX-8, 2010 Mazda RX-8, 2009 Mazda RX-8, 2008 Mazda RX-8, and 2007 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Move the rear housing to the left and right to cut the oil film.
  2. Remove the rear housing.
    CAUTION:
    • If a seal adheres to the rear housing, put it back in its original position in the rotor.

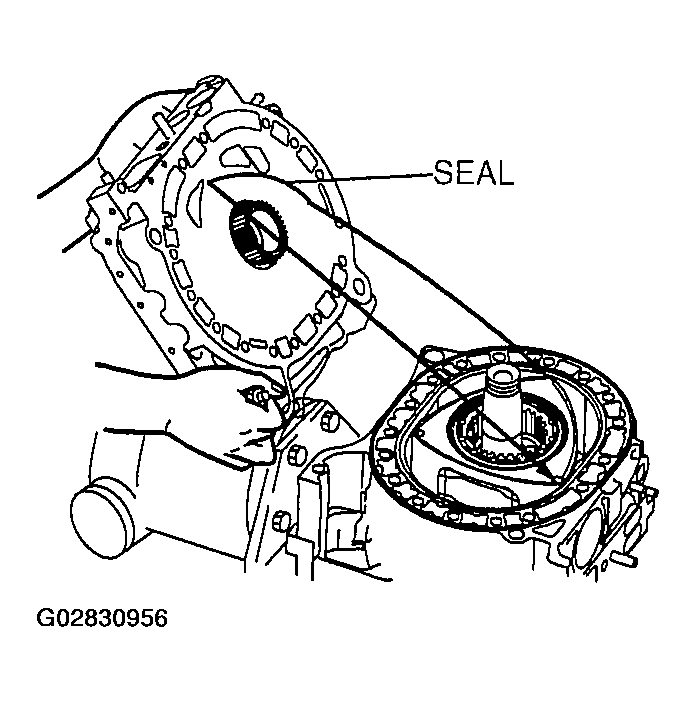

    Fig 1: Rear Housing Seal
    G02830956Courtesy of MAZDA MOTORS CORP.
