Intermediate Housing Disassembly Note
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mazda RX-8, 2010 Mazda RX-8, 2009 Mazda RX-8, 2008 Mazda RX-8, and 2007 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

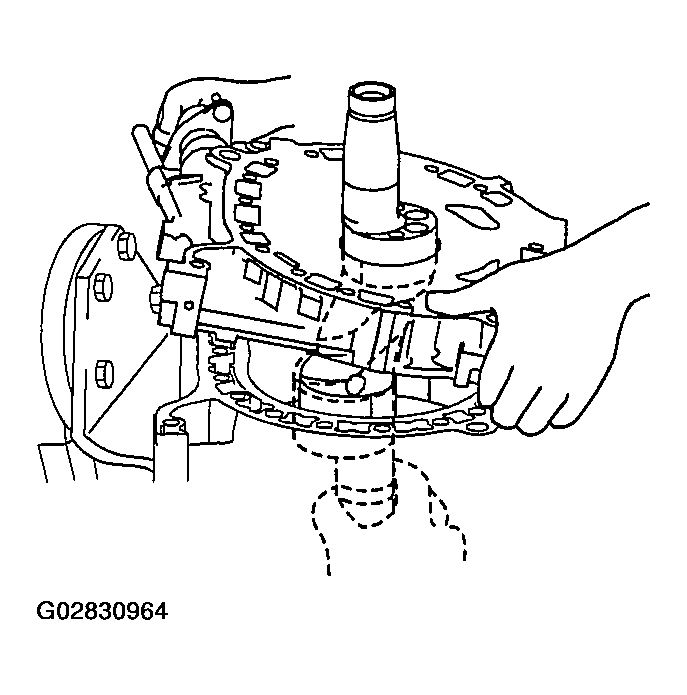

- Lift the intermediate housing up while another person pushes the eccentric shaft upward approx. 3 cm {1.18 in} .
- Rotate and remove the intermediate housing at the point where the eccentric shaft does not catch.CAUTION:
- If a seal adheres to the intermediate housing, put it back in its original position in the rotor.
