Oil Pump Sprocket Disassembly Note

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mazda RX-8, 2010 Mazda RX-8, 2009 Mazda RX-8, 2008 Mazda RX-8, and 2007 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lock the flywheel (MT) or counterweight (AT) against rotation using the SST  .

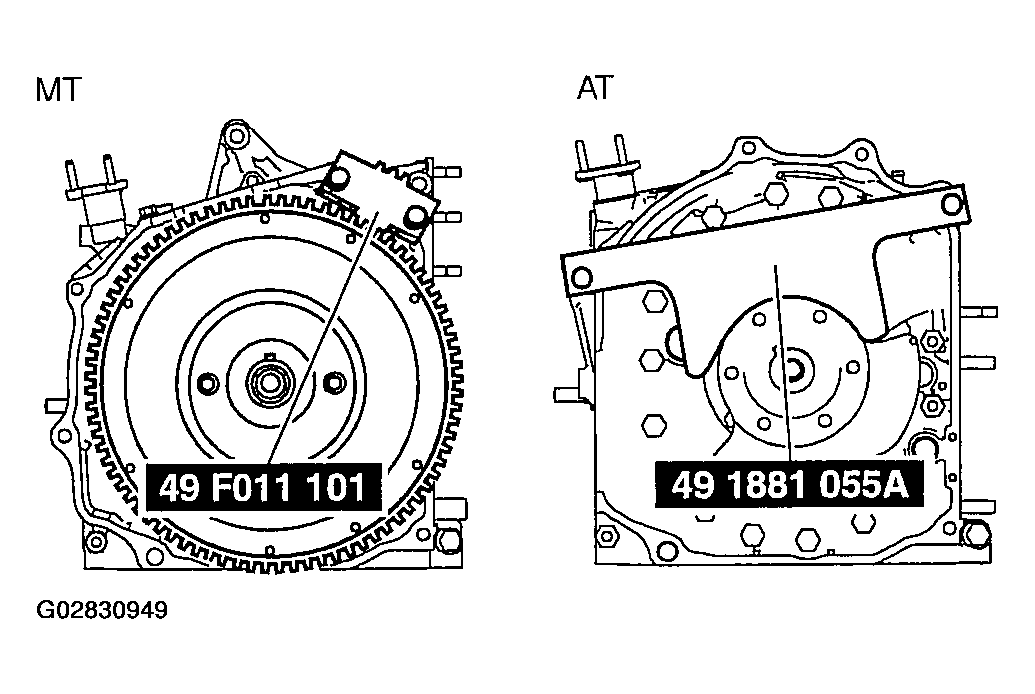

    Fig 1: Locking Flywheel/Counterweight
    G02830949Courtesy of MAZDA MOTORS CORP.
  2. Unlock the crimped part of the lock washer and remove the locknut and lock washer.
  3. Remove the oil pump drive gear and oil pump sprocket wheel with the oil pump chain engaged.
    Fig 2: Removing Oil Pump Drive Gear
    G02830950Courtesy of MAZDA MOTORS CORP.
