Spacer Assembly Note
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mazda RX-8, 2010 Mazda RX-8, 2009 Mazda RX-8, 2008 Mazda RX-8, and 2007 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

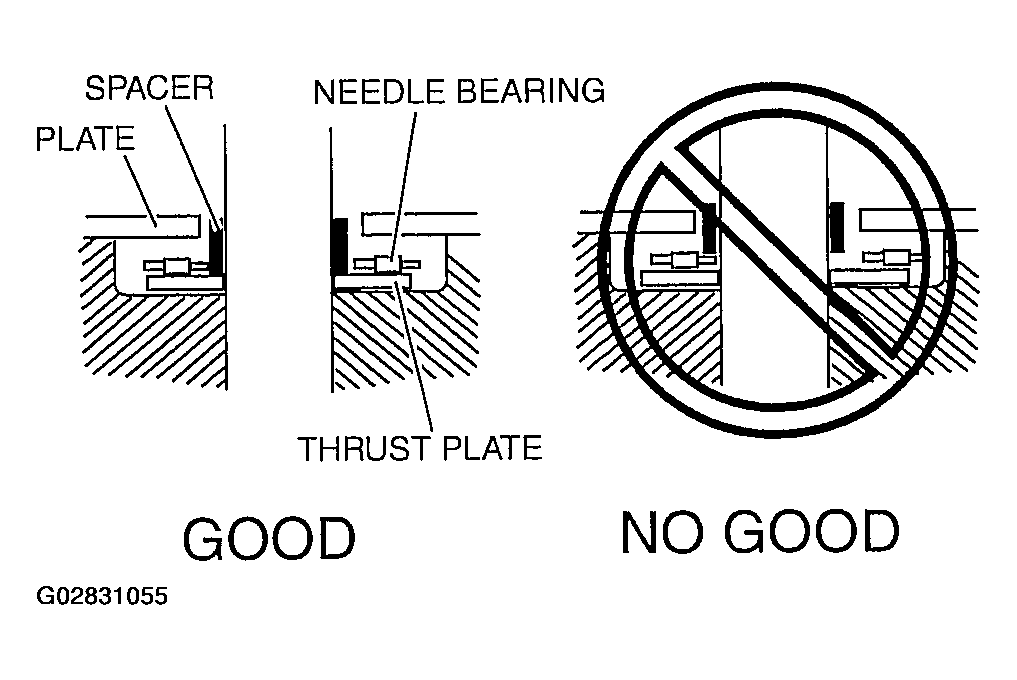

CAUTION:
- When assembling the spacer, do not allow the spacer to be caught in the needle bearing of the plate.
NOTE:
- Perform eccentric shaft end play inspection. (See ECCENTRIC SHAFT END PLAY INSPECTION .)
