Pulley LOCKBOLT Assembly Note

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mazda RX-8, 2010 Mazda RX-8, 2009 Mazda RX-8, 2008 Mazda RX-8, and 2007 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

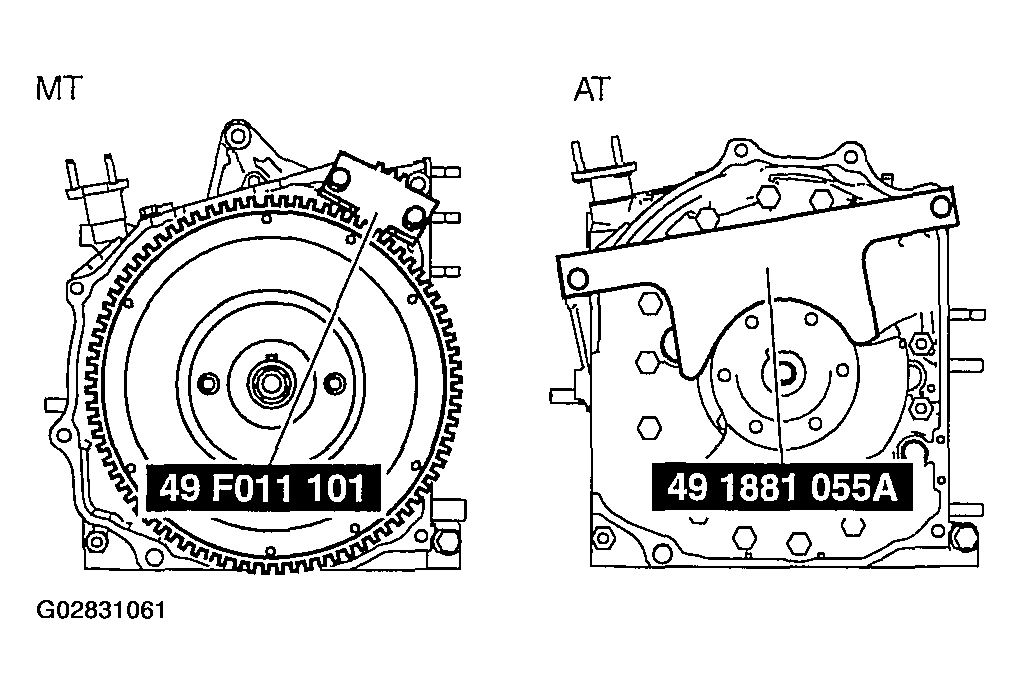

Lock the flywheel (MT) or counterweight (AT) against rotation using the SSTs .

Fig 1: Locking Flywheel/Counterweight
Courtesy of MAZDA MOTORS CORP.
Apply engine oil to the pulley lockbolt threads.
Assemble a new O-ring.
Apply silicone sealant to the seating face.

Fig 2: Applying Silicone Sealant To Seating Face
Courtesy of MAZDA MOTORS CORP.
Tighten the pulley lockbolt.
Tightening Torque
1. 254-294 N.m {25.9-29.9 kgf.m, 188-215 ft.lbf}
