Oil Pump Sprocket Wheel Assembly Note

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mazda RX-8, 2010 Mazda RX-8, 2009 Mazda RX-8, 2008 Mazda RX-8, and 2007 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lock the flywheel (MT) and counterweight (AT) against rotation using the SSTs  .

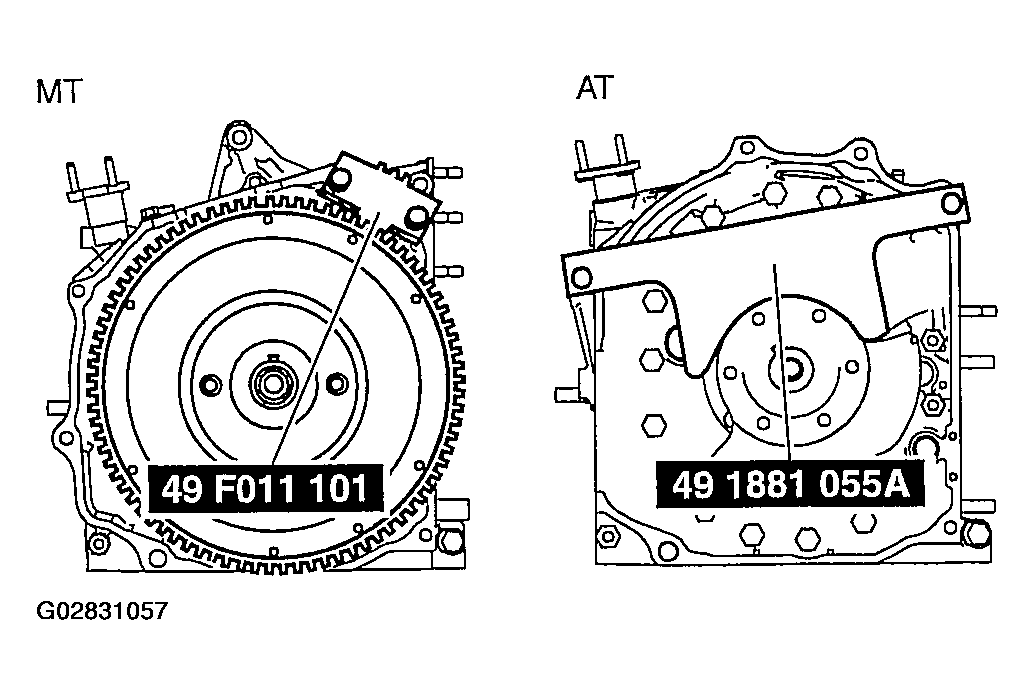

    Fig 1: Locking Flywheel/Counterweight
    G02831057Courtesy of MAZDA MOTORS CORP.
  2. Assemble the oil pump shaft with a new lock washer and locknut, and tighten.

    Tightening Torque

    1. 31.4-46.1 N.m {3.21-4.70 kgf.m, 23.2-34.0 ft.lbf}
  3. Bend the lock washer and crimp.
