Front Cover Assembly Note

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mazda RX-8, 2010 Mazda RX-8, 2009 Mazda RX-8, 2008 Mazda RX-8, and 2007 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Before installing the front cover, install the pulley boss to the eccentric shaft and measure the height between the eccentric shaft top and the pulley boss.
- If not within the specification, verify that the spacer is not caught in the needle bearing.
Standard
1. 10.34-11.14 mm {0.4071-0.4385 in}

  Fig 1: Measuring Height Between Eccentric Shaft Top & Pulley Boss
  Courtesy of MAZDA MOTORS CORP.
Tighten the engine front cover installation bolts in the order shown in the figure.
Tightening Torque
1. 18.6-25.5 N.m {1.90-2.60 kgf.m, 13.8-18.8 ft.lbf}

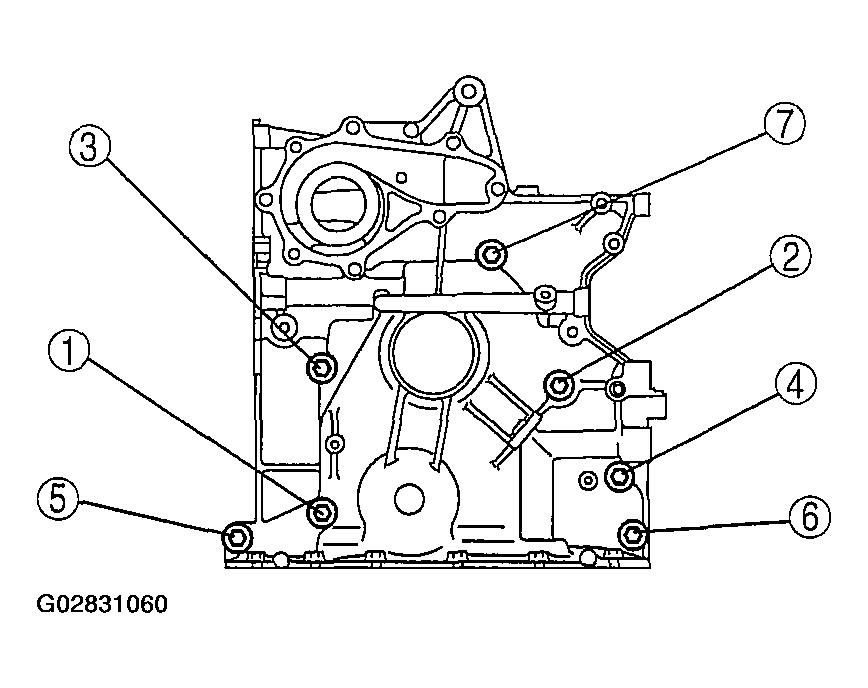

  Fig 2: Engine Front Cover Bolt Tightening Sequence
