Tension Bolt Assembly Note

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mazda RX-8, 2010 Mazda RX-8, 2009 Mazda RX-8, 2008 Mazda RX-8, and 2007 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Apply engine oil to the tension bolt threads and assemble to the housing with a new seal washer.
CAUTION:
- Assemble a tension bolt which has a seal washer with the rubber projection facing the housing side.

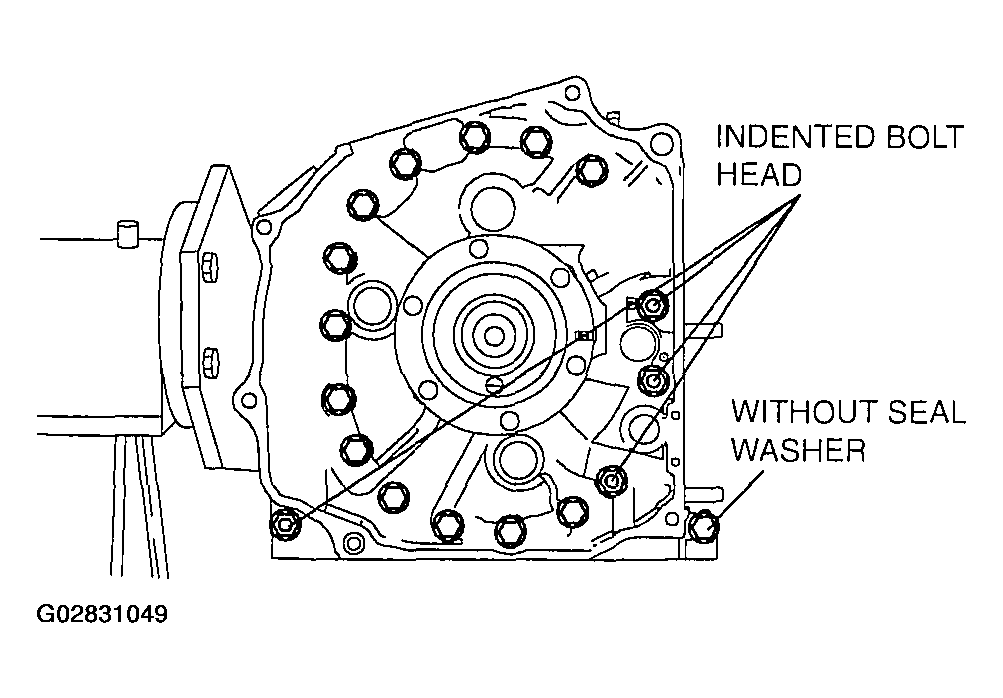

Fig 1: Identifying Tension Bolt Installation Positions
Courtesy of MAZDA MOTORS CORP.
Tighten the tension bolts in the order indicated in the figure in 2-3 passes.
Tightening Torque
1. 31.4-39.2 N.m {3.21-3.99 kgf.m, 23.2-28.9 ft.lbf}

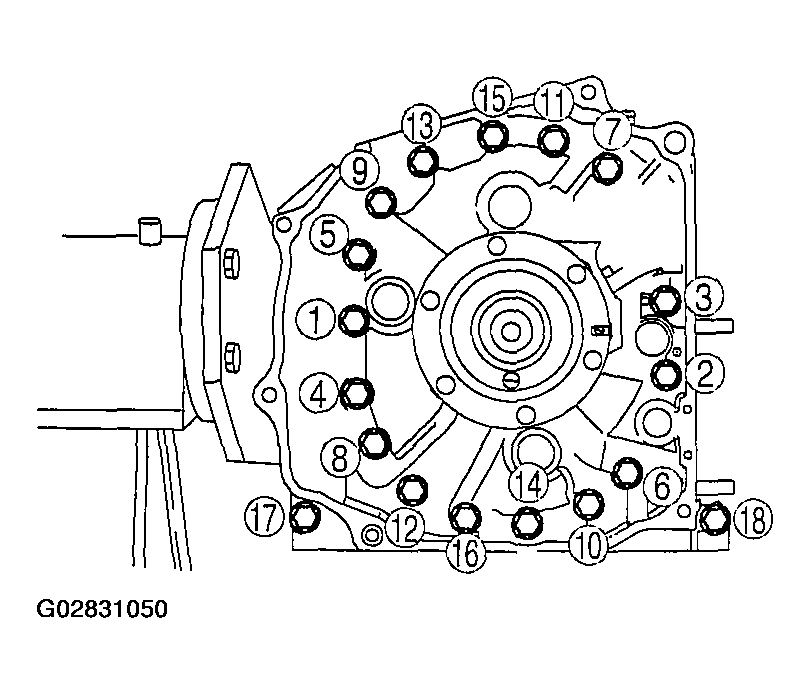

  Fig 2: Tension Bolt Tightening Sequence
  Courtesy of MAZDA MOTORS CORP.
