Rotor Housing Assembly Note

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mazda RX-8, 2010 Mazda RX-8, 2009 Mazda RX-8, 2008 Mazda RX-8, and 2007 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Assemble the seal rubber without any torsion.
Do not get oil or grease on the seal rubber.

Apply petroleum jelly to a new seal rubber.
Assemble the outer seal rubber to the housing with the white paint in the direction shown in the figure.

Fig 1: Installing Outer Seal Rubber
Courtesy of MAZDA MOTORS CORP.

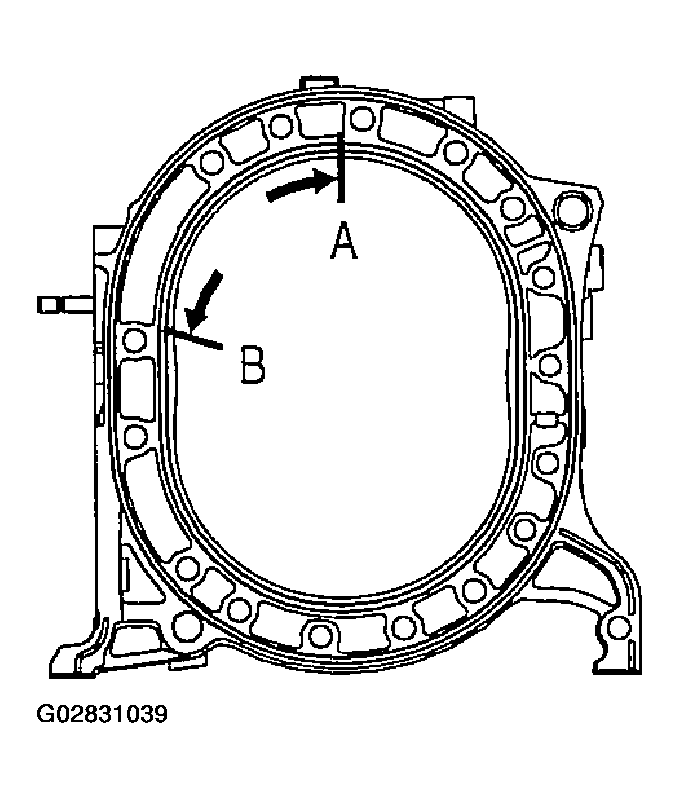

Assemble the inner seal rubber to the housing with the seal rubber joint placed between A-B.

Fig 2: Identifying Points A & B
Courtesy of MAZDA MOTORS CORP.

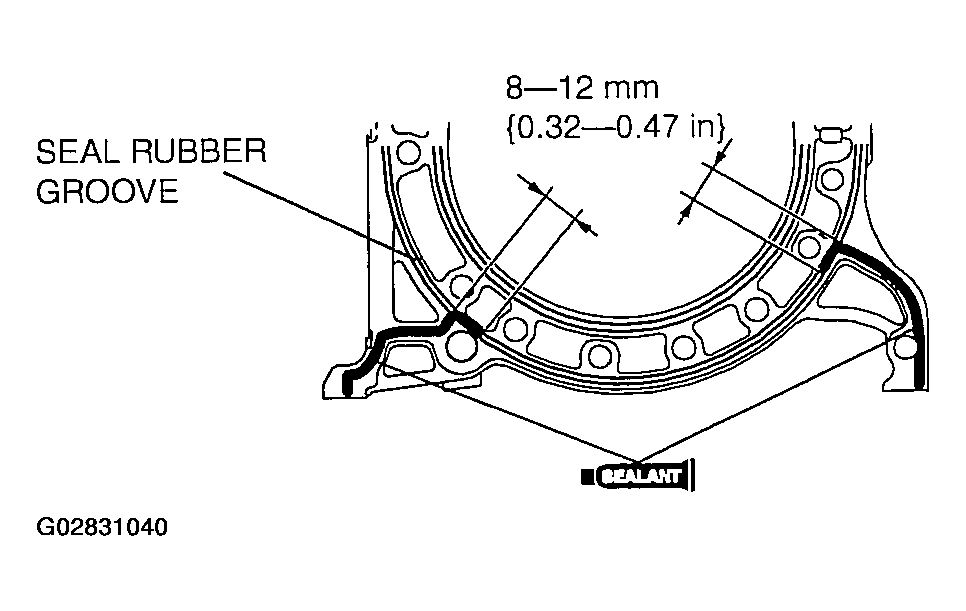

Apply the silicone sealant to the position indicated in the figure.
Bead Thickness
1. 2.5-6.5 mm {0.099-0.255 in}

  Fig 3: Applying Silicone Sealant
  Courtesy of MAZDA MOTORS CORP.
Apply thread locking compound to the attaching surface of the apex seal and the side piece and affix them.
CAUTION:
- After adhesion, make sure that there is no gap between the apex seal and side piece.
Fig 4: Identifying Attaching Surface
Courtesy of MAZDA MOTORS CORP.
- If adhesive protrudes, remove with a razor.
NOTE:
- When using a new apex seal, the procedure above is not needed.
Assemble the apex seal and apex seal spring (short) together with the side piece to the engine rear side.

Fig 6: Installing Apex Seal & Apex Seal Spring (Short)
Courtesy of MAZDA MOTORS CORP.

CAUTION:

Assemble the apex seal spring until it catches the spring stopper of the side piece.

Fig 7: Installing Apex Seal Spring (Long)

Courtesy of MAZDA MOTORS CORP.

Assemble the apex seal spring (long) while pressing the apex seal spring (short).
