Rear Housing Assembly Note

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mazda RX-8, 2010 Mazda RX-8, 2009 Mazda RX-8, 2008 Mazda RX-8, and 2007 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Assemble the rear housing with the rear stationary gear and the internal gear of the rotor engaged.
CAUTION:
- Do not allow the side piece to be caught between the rotor housing and rear housing.

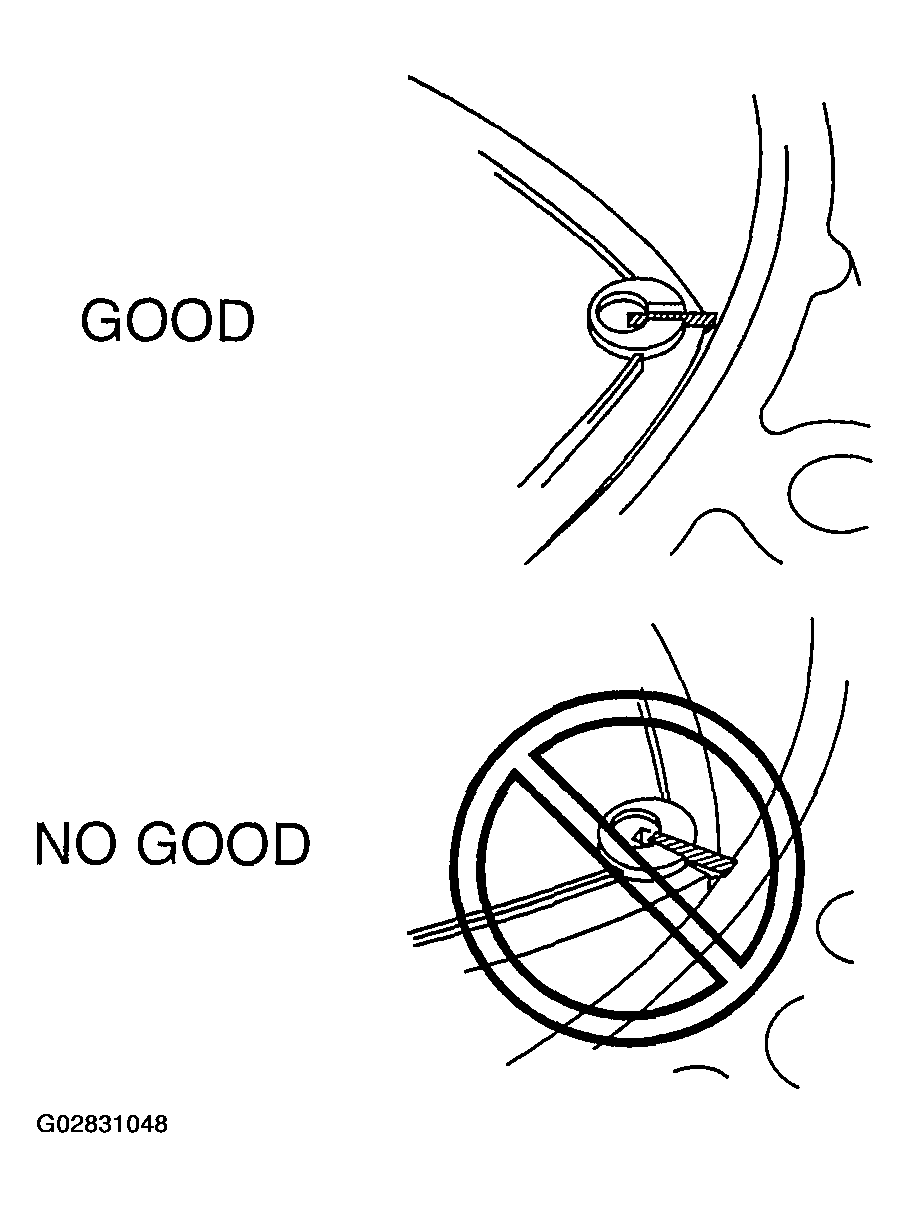

  Fig 1: Proper Side Piece Installation
  Courtesy of MAZDA MOTORS CORP.
