Intermediate Housing Assembly Note

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mazda RX-8, 2010 Mazda RX-8, 2009 Mazda RX-8, 2008 Mazda RX-8, and 2007 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Assemble the intermediate housing with the support of an assistant pushing the eccentric shaft up approx. 3 cm {1.18 in}  .

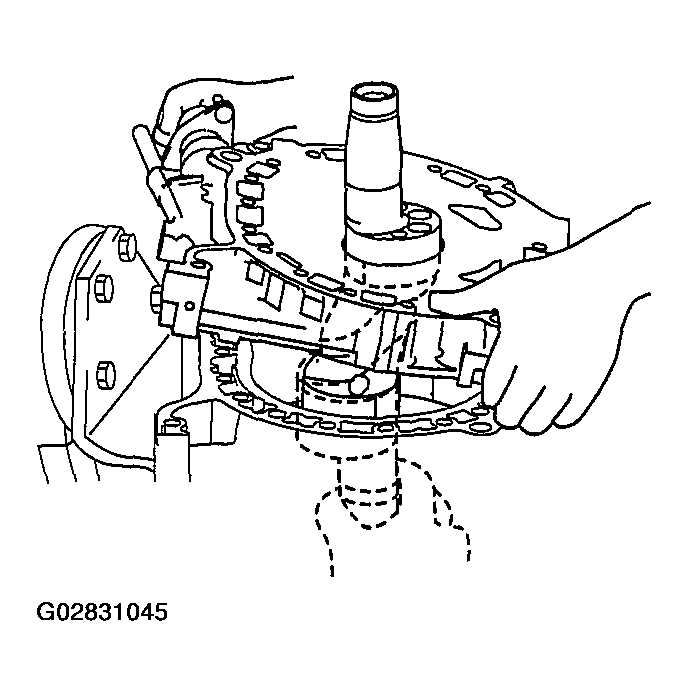

    Fig 1: Installing Intermediate Housing
    G02831045Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • Do not allow the side piece to be caught between the rotor housing and intermediate housing.

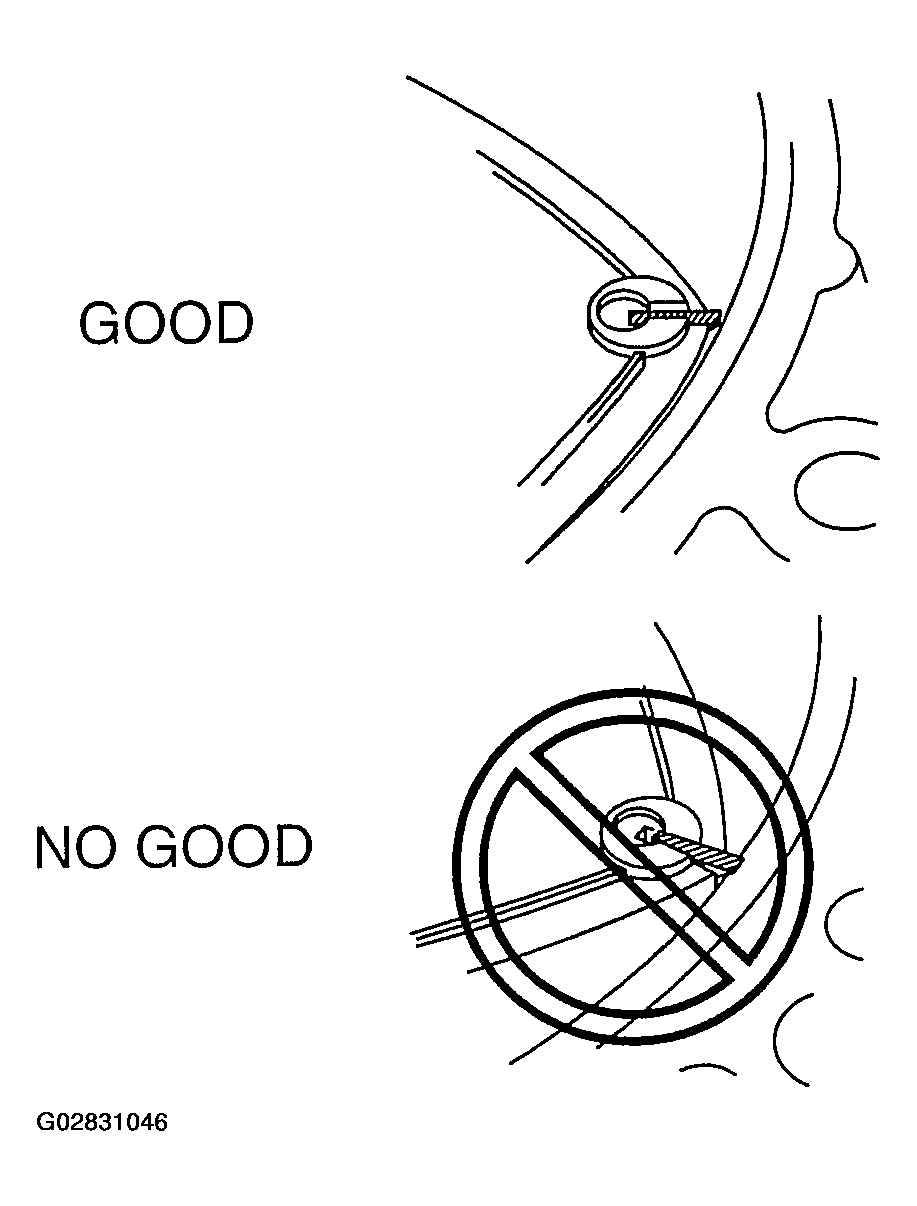

      • Fig 2: Proper Side Piece Installation
      G02831046Courtesy of MAZDA MOTORS CORP.
