Using 49 J010 3A0A

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mazda RX-8, 2010 Mazda RX-8, 2009 Mazda RX-8, 2008 Mazda RX-8, and 2007 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

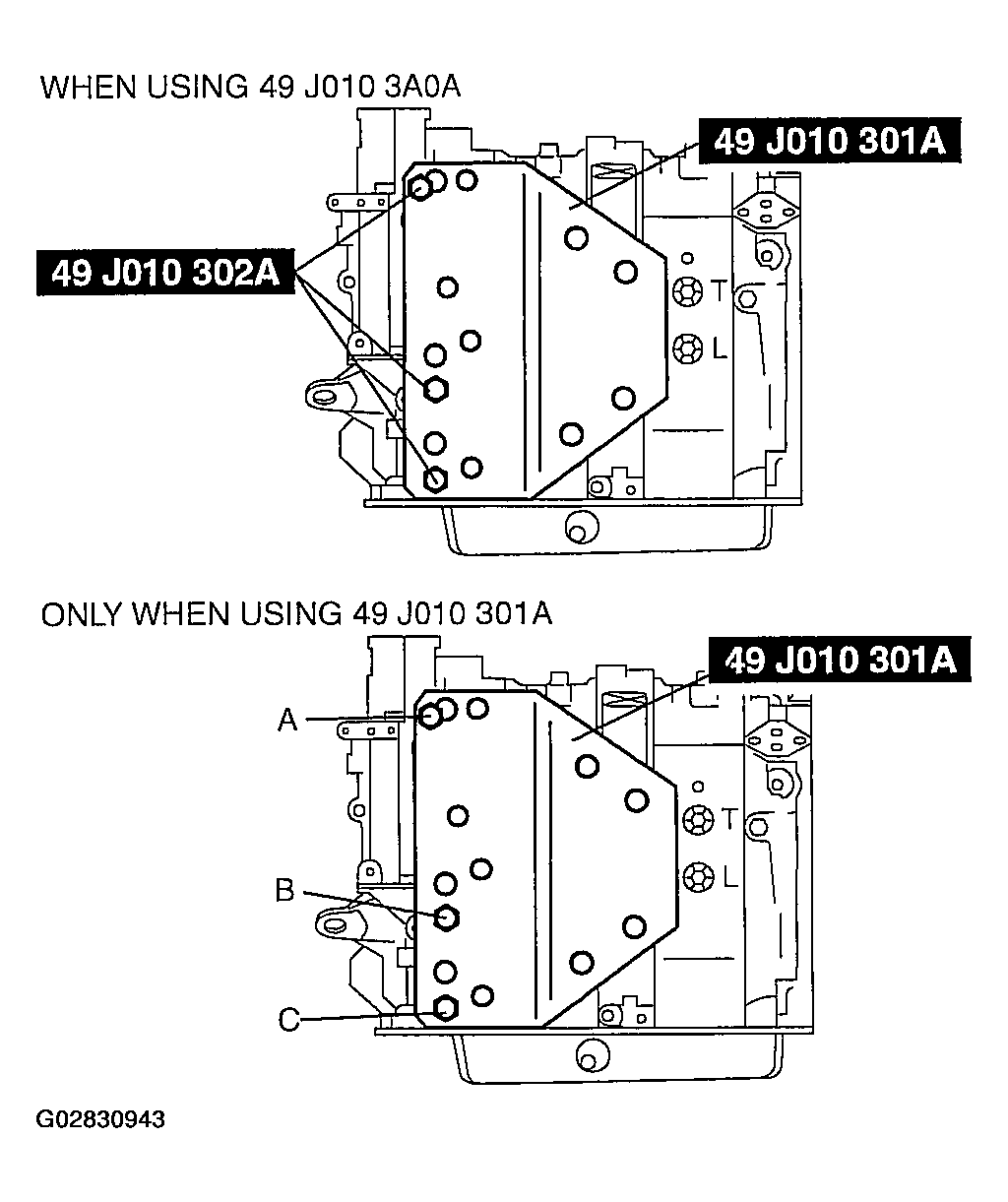

Install the SSTs to the position shown in the figure.

Fig 1: Installing SST To Engine

Courtesy of MAZDA MOTORS CORP.

SST BOLT IDENTIFICATION

Bolt Identification/Location	Specification
A	M8x1.25 Length 25 mm {1.28 in} Bolt
B	99940 1201 (left Side Engine Mount Installation Nut) Or M12x1.5 Nut
C	99756 1230 (Left Side Engine Mount Installation Nut) + Washer

Mount the engine to the SST (engine stand).
Remove the oil pan drain plug and drain the engine oil.
Install the oil pan drain plug with a new washer.
Tightening Torque
1. 29.4-39.2 N.m {3.00-3.99 kgf.m, 21.7-28.9 ft.lbf}
