Eccentric Shaft Position Plate Inspection

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mazda RX-8, 2010 Mazda RX-8, 2009 Mazda RX-8, 2008 Mazda RX-8, and 2007 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Visually inspect the eccentric shaft position plate for damage and erosion.
- If there is any malfunction, replace the eccentric shaft position plate.

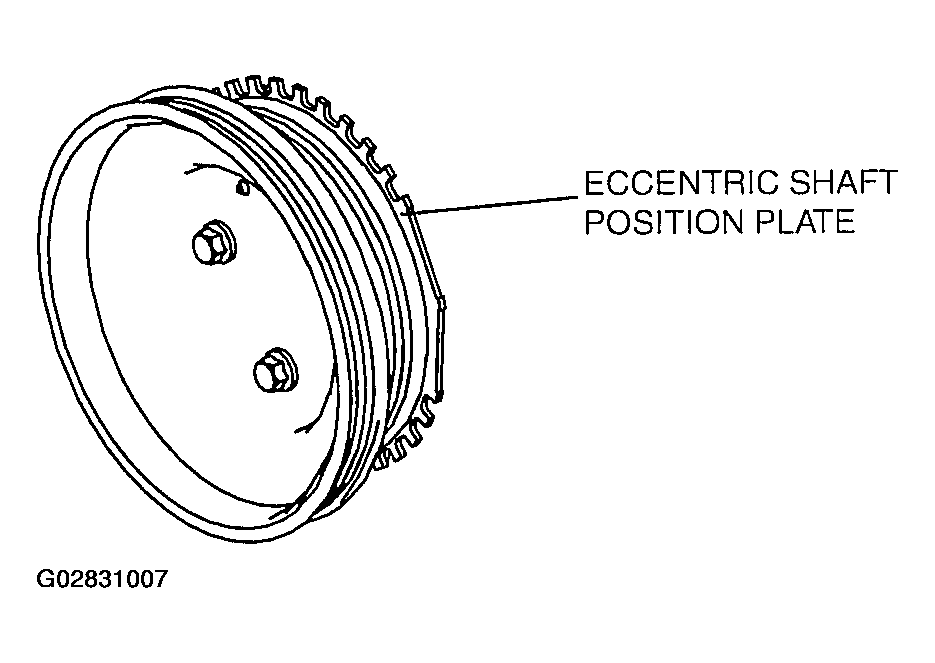

  Fig 1: Inspecting Eccentric Shaft Position Plate
  Courtesy of MAZDA MOTORS CORP.
