Intake-Air System Location Index

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

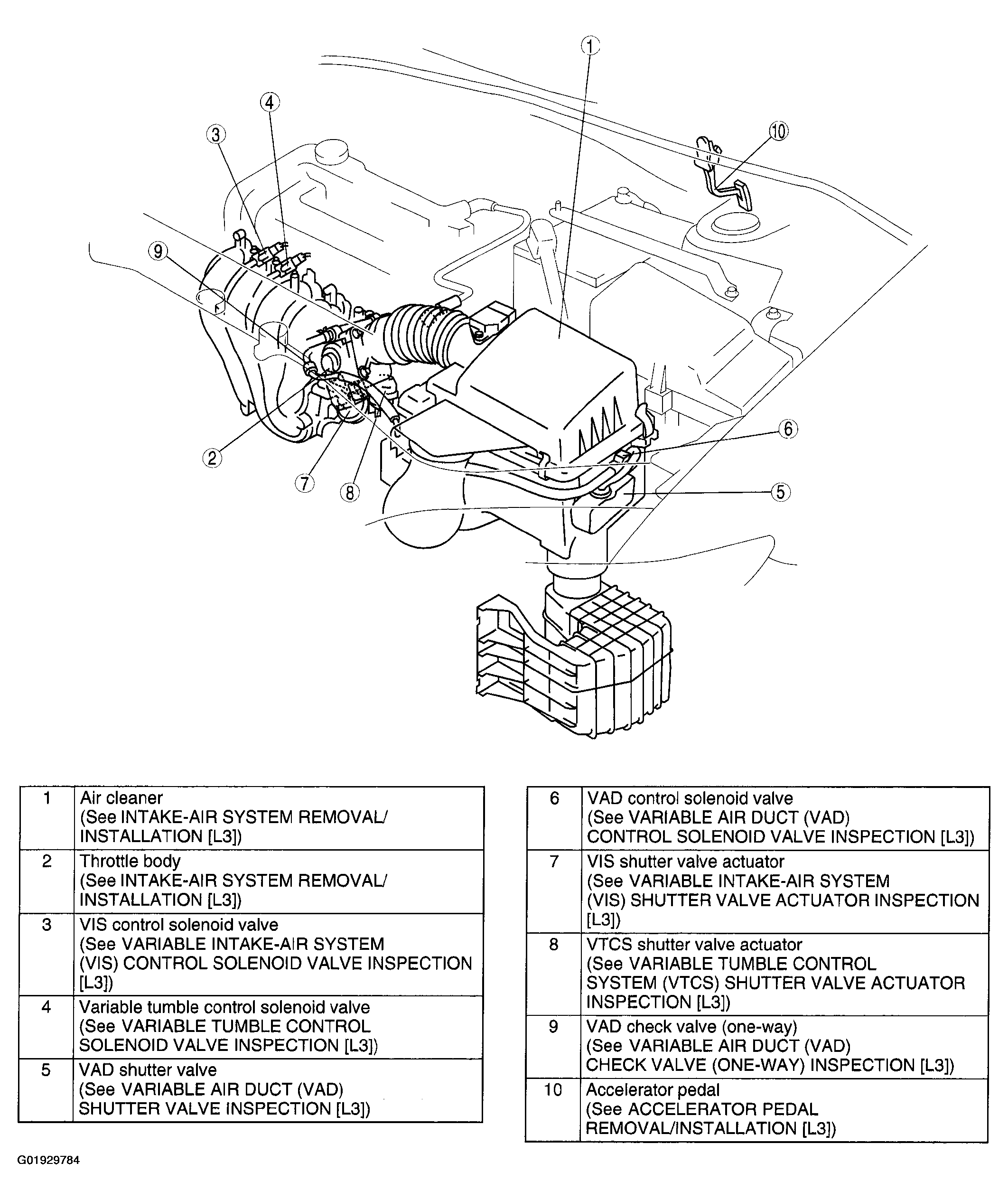

Fig 1: Locating Intake Air System Components
G01929784Courtesy of MAZDA MOTORS CORP.
