Accelerator Pedal Removal/Installation

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove in the order indicated in the figures.

Fig 1: Removing Accelerator Pedal (Legend)
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.

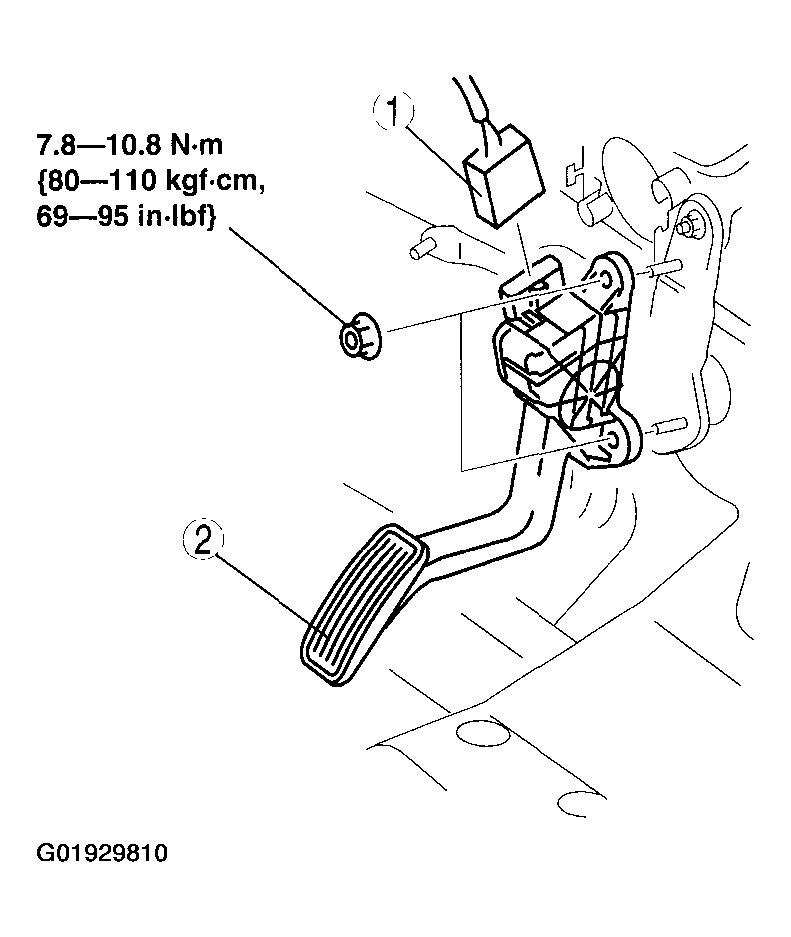

Fig 2: Removing Accelerator Pedal
Courtesy of MAZDA MOTORS CORP.
