Timing Belt Removal Note

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

Install the pulley lock bolt.
Turn the crankshaft clockwise and align the timing marks.

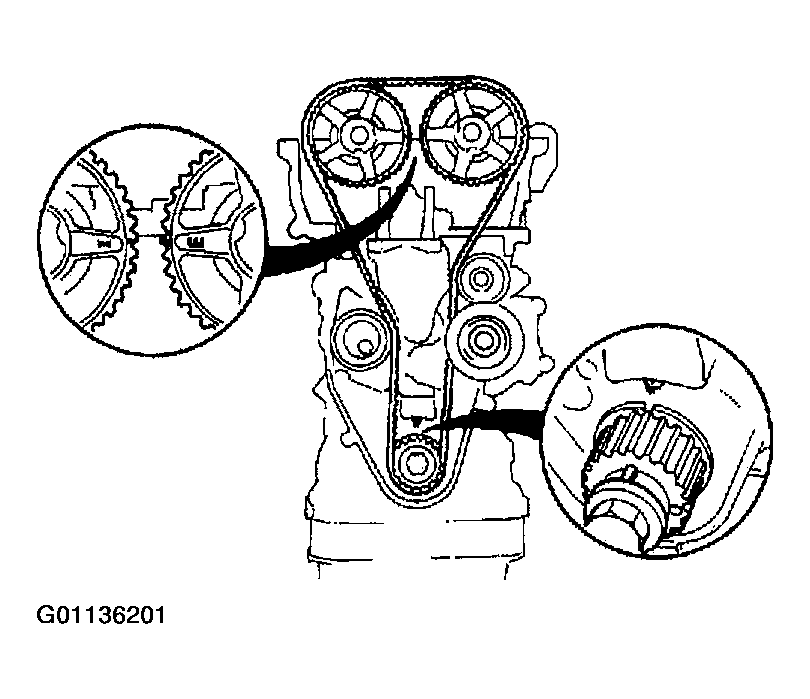

Fig 1: Turning Crankshaft Clockwise
Courtesy of MAZDA MOTORS CORP.
Turn the tensioner clockwise using an Allen wrench.
Disconnect the tensioner spring from the hook pin.

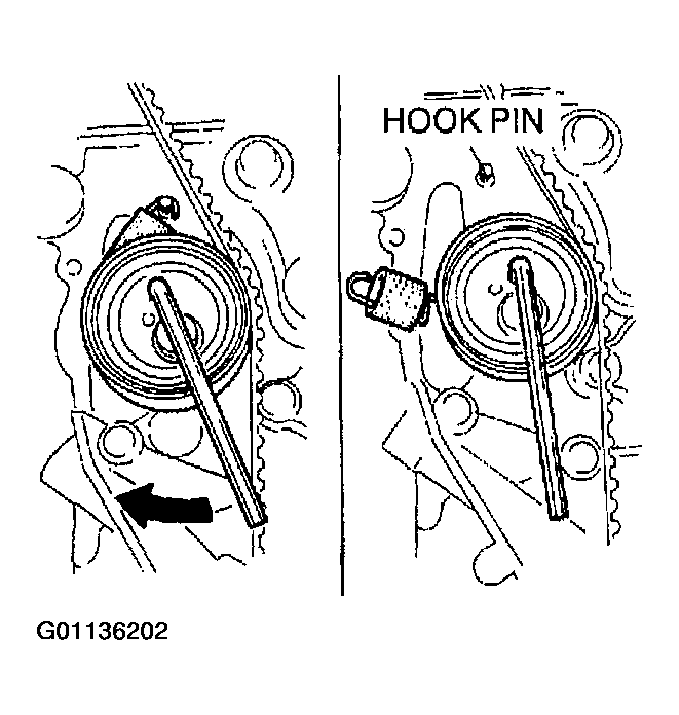

Fig 2: Disconnecting Tensioner Spring
Courtesy of MAZDA MOTORS CORP.

CAUTION:

Forcefully twisting the belt, turning it inside out, or allowing oil or grease on it will damage the belt and shorten its life.

NOTE:

Mark the timing belt rotating direction on the belt for proper reinstallation.

Fig 3: Inspecting Timing Belt

Courtesy of MAZDA MOTORS CORP.
