Cylinder Head Cover Installation Note

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.
  1. Verify that the grooves on the cylinder head cover are free of oil, water and other foreign material.
  2. Install the cylinder head cover gasket into the cylinder head cover.
  3. Apply silicone sealant to the cylinder head as shown.

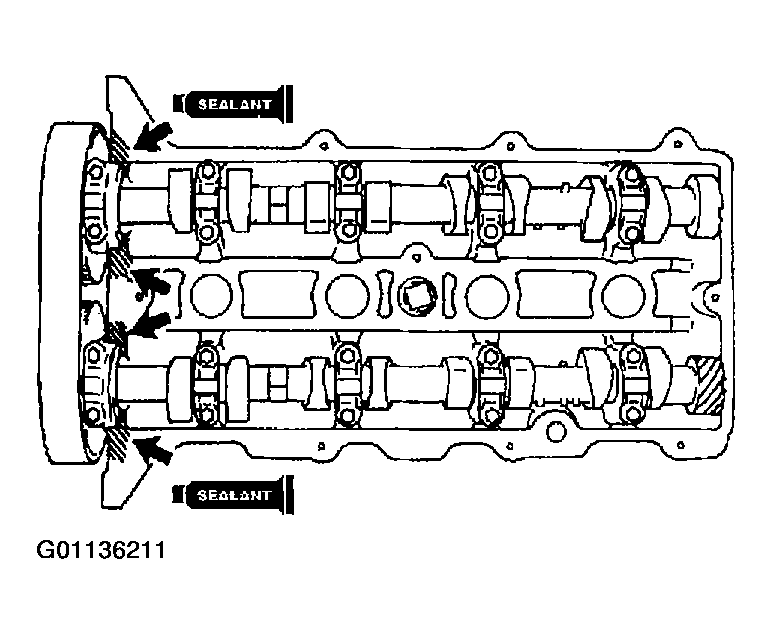

    Fig 1: Apply Silicone Sealant
    G01136211Courtesy of MAZDA MOTORS CORP.
  4. Tighten the cylinder head cover bolts in two or three steps in the order shown.

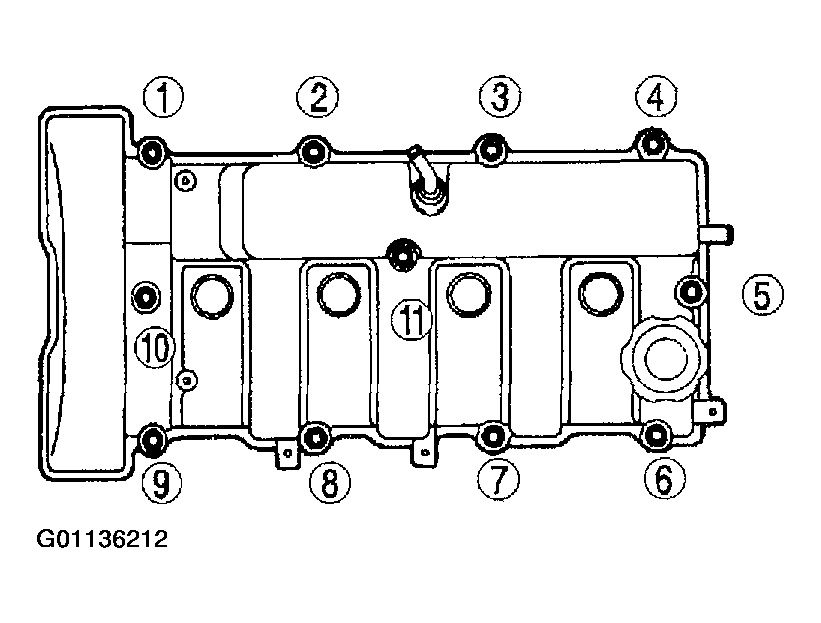

    Fig 2: Tightening Cylinder Head Cover Bolts
    G01136212Courtesy of MAZDA MOTORS CORP.
