Engine Disassembly/Assembly

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the engine and transaxle. See MANUAL TRANSAXLE REMOVAL/INSTALLATION . See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION .
  2. Remove the intake-air system.
  3. Remove the exhaust system.
  4. Remove the oil filter.
  5. Remove the thermostat.
  6. Remove the ignition coil.
  7. Remove the generator.
  8. Disassemble in the order indicated in Fig 1.
  9. Assemble in the reverse order of disassembly.

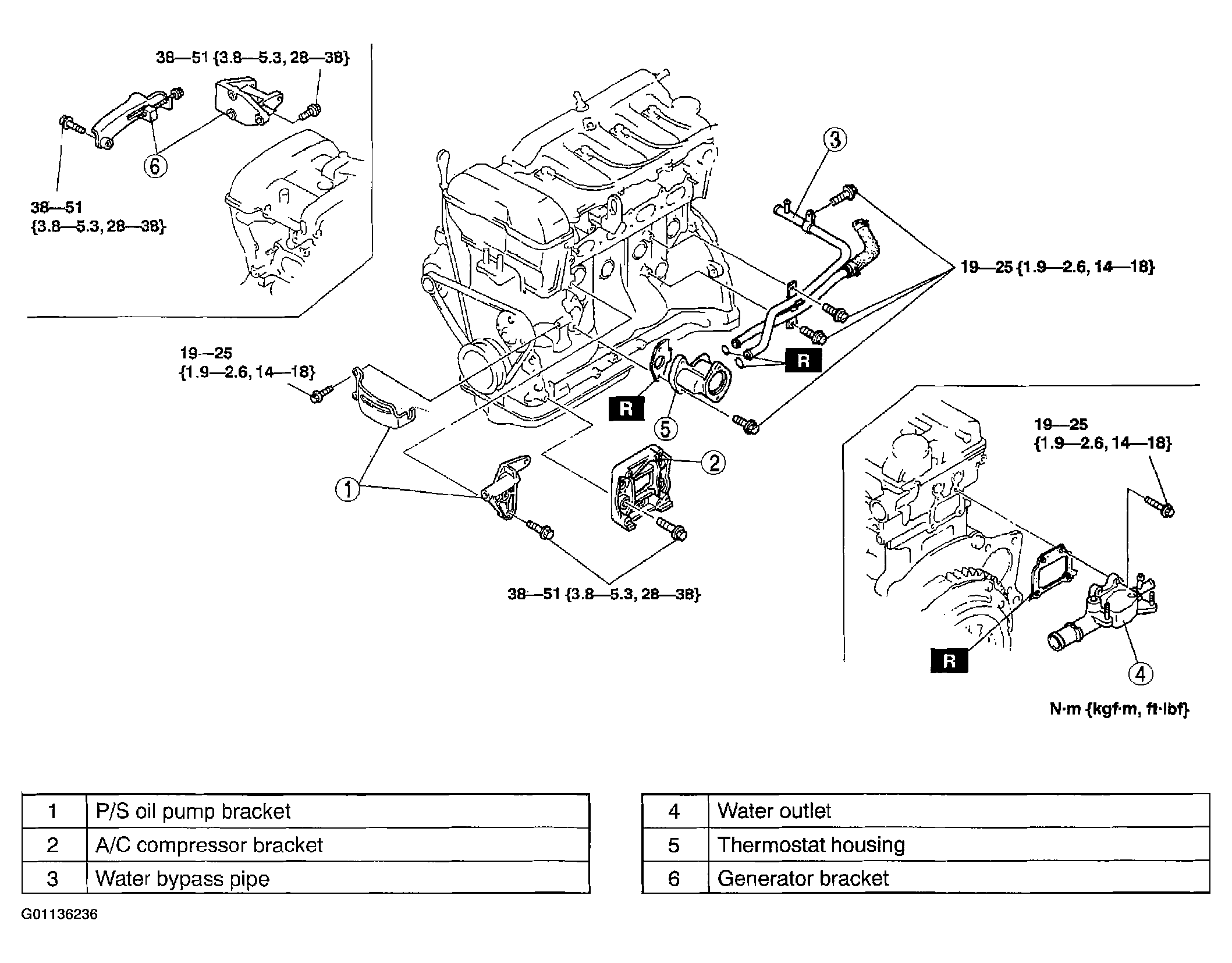

    Fig 1: Disassembling/Assembling Engine
    G01136236Courtesy of MAZDA MOTORS CORP.
