Cylinder Head Removal Note

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.
  1. Temporarily install the No.3 engine mount rubber to support the engine.
  2. Loosen the cylinder head bolts in two or three steps in the order shown.

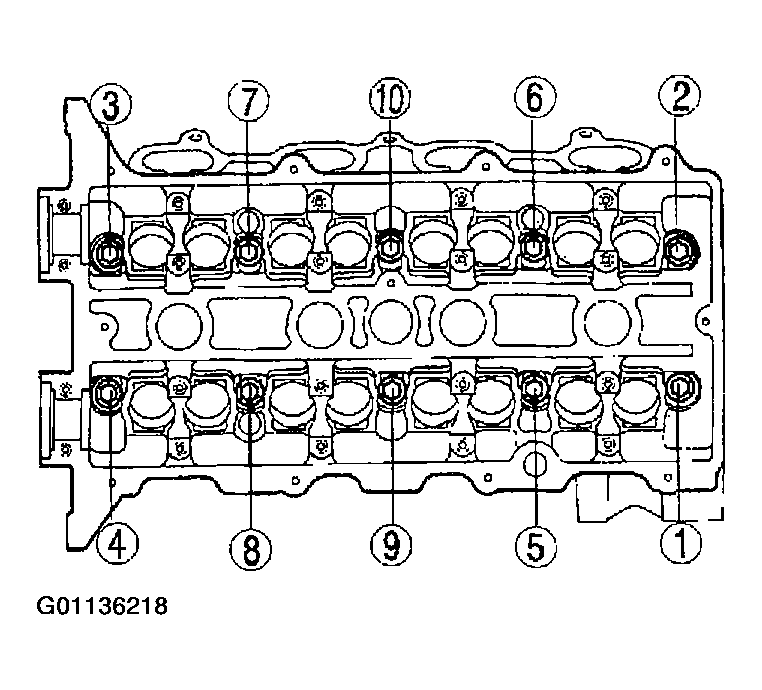

    Fig 1: Cylinder Head Bolts Removal Sequence
    G01136218Courtesy of MAZDA MOTORS CORP.
