Camshaft Pulley Installation Note
WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

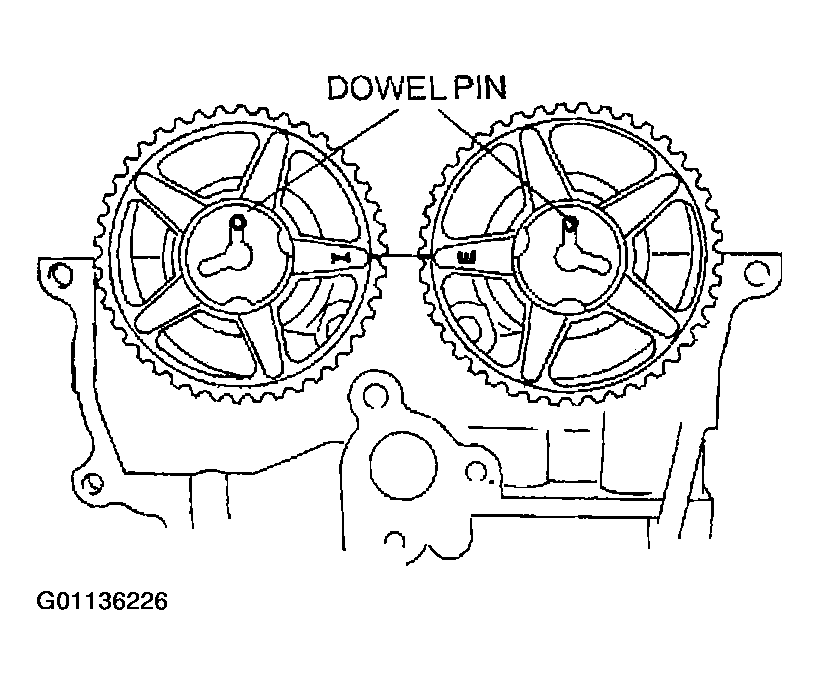

- Install the camshaft pulleys, positioning the dowel pins as shown.
- Hand tighten the camshaft pulley bolts.
- Hold the camshaft using a wrench on the cast hexagon as shown, and tighten each bolt.
Tightening Torque
50-60 N.m {5.0-6.2 kgf.m, 37-44 ft.lbf}
