Valve Guide Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Mazda 6, 2007 Mazda 6, 2006 Mazda 6, 2005 Mazda 6, and 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Assemble the SSTs so that depth L is as specified.
Depth L

IN: 13.4-14.2 mm {0.528-0.559 in}

EX: 13.4-14.2 mm {0.528-0.559 in}

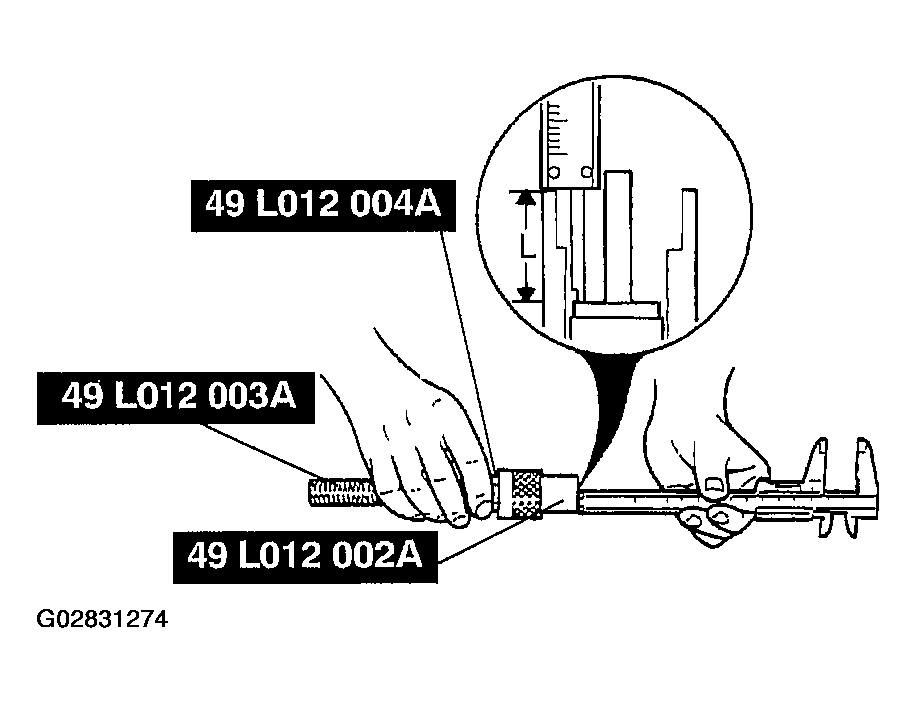

Fig 1: Measuring Distance L
Courtesy of MAZDA MOTORS CORP.
Tap the valve guide in from the side opposite the combustion chamber until the SSTs contact the cylinder head.

Fig 2: Installing Valve Guide
Courtesy of MAZDA MOTORS CORP.
Verify that the valve guide projection height is within the specification.

Standard Height

IN: 13.4-14.2 mm {0.528-0.559 in}

EX: 13.4-14.2 mm {0.528-0.559 in}
