Variable Valve Timing Actuator Disassembly Note

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Mazda 6, 2007 Mazda 6, 2006 Mazda 6, 2005 Mazda 6, and 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • The variable valve timing actuator cannot be disassembled because it is a precision unit.
NOTE:
  • The variable valve timing actuator camshaft sprocket is integrated with the variable valve timing actuator and cannot be disassembled.
  1. Secure the camshaft sprocket in a vise using the SST  .

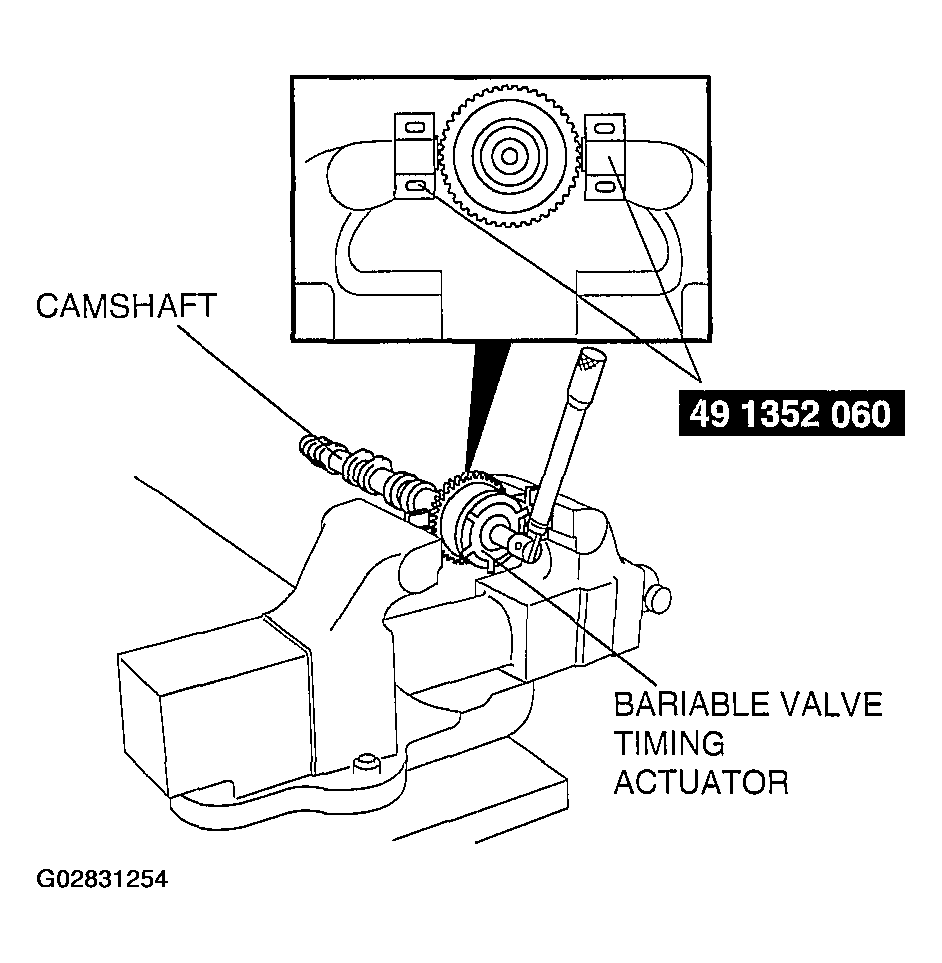

    Fig 1: Securing Camshaft Sprocket In A Vise
    G02831254Courtesy of MAZDA MOTORS CORP.
  2. Loosen the variable valve timing actuator tightening bolt.
  3. Remove the variable valve timing actuator.
