Engine Front Cover Disassembly Note

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Mazda 6, 2007 Mazda 6, 2006 Mazda 6, 2005 Mazda 6, and 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine front cover bolts and studs in the order indicated in the figure.

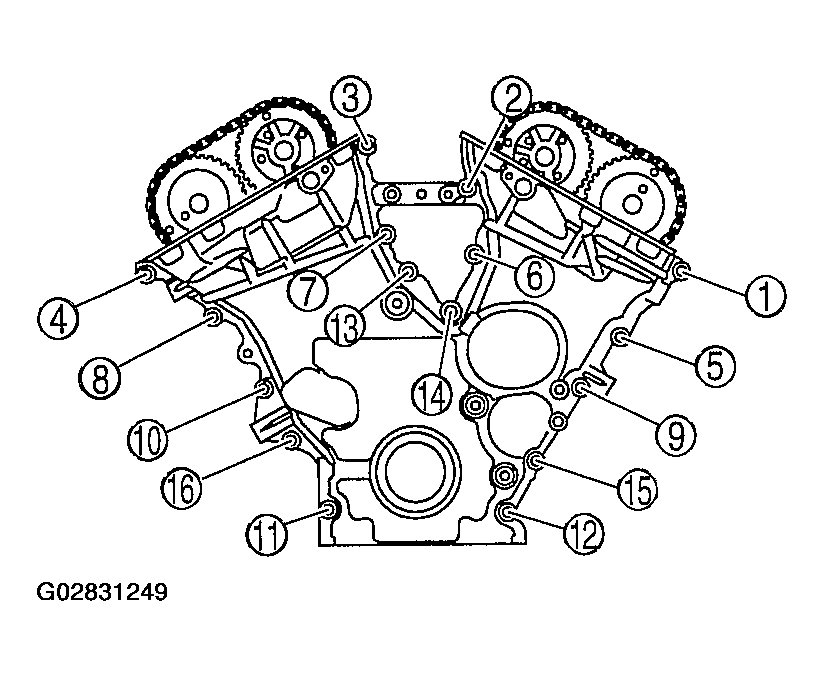

    Fig 1: Engine Front Cover Bolt & Stud Removal Sequence
    G02831249Courtesy of MAZDA MOTORS CORP.
  2. Remove the oil seal using a screwdriver.
    Fig 2: Removing Oil Seal
    G02831250Courtesy of MAZDA MOTORS CORP.
