Crankshaft Pulley Disassembly Note

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Mazda 6, 2007 Mazda 6, 2006 Mazda 6, 2005 Mazda 6, and 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Hold the flywheel (MTX) or the drive plate (ATX) using the SST  .
    Fig 1: Holding Flywheel (MTX) Or Drive Plate (ATX)
    G02831247Courtesy of MAZDA MOTORS CORP.
  2. Remove the crankshaft pulley lock bolt.
  3. Remove the crankshaft pulley using the SST  and three (M8x 1.25x45)  bolts.

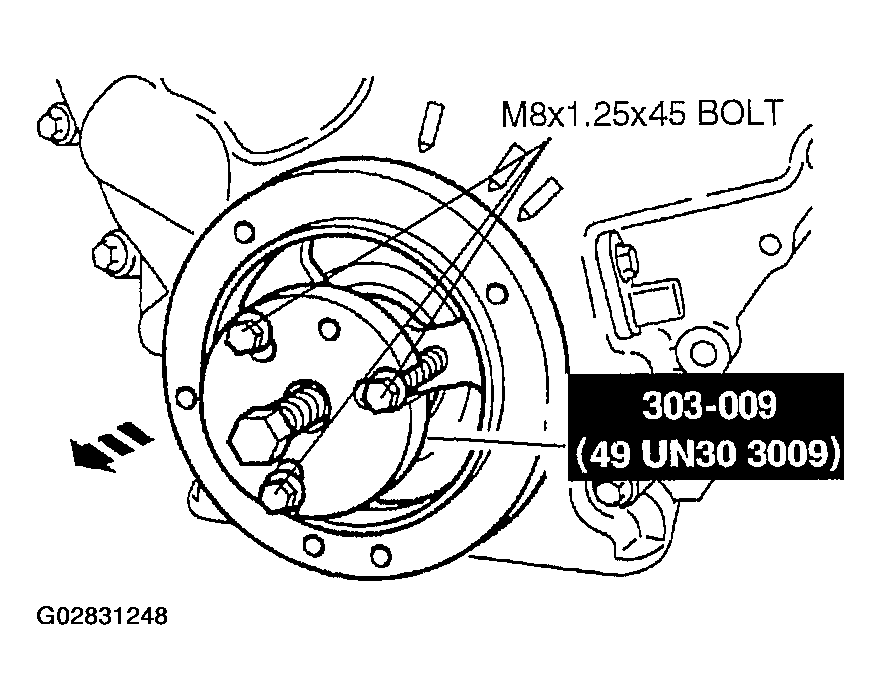

    Fig 2: Removing Crankshaft Pulley
    G02831248Courtesy of MAZDA MOTORS CORP.
