Chain TENSIONER (LH) Disassembly Note

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Mazda 6, 2007 Mazda 6, 2006 Mazda 6, 2005 Mazda 6, and 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before removing chain tensioner (LH), turn the crankshaft clockwise 1 and 2/3 turns  to position the crankshaft keyway in the 11 o'clock  position, (camshafts (LH) are in the neutral position.)

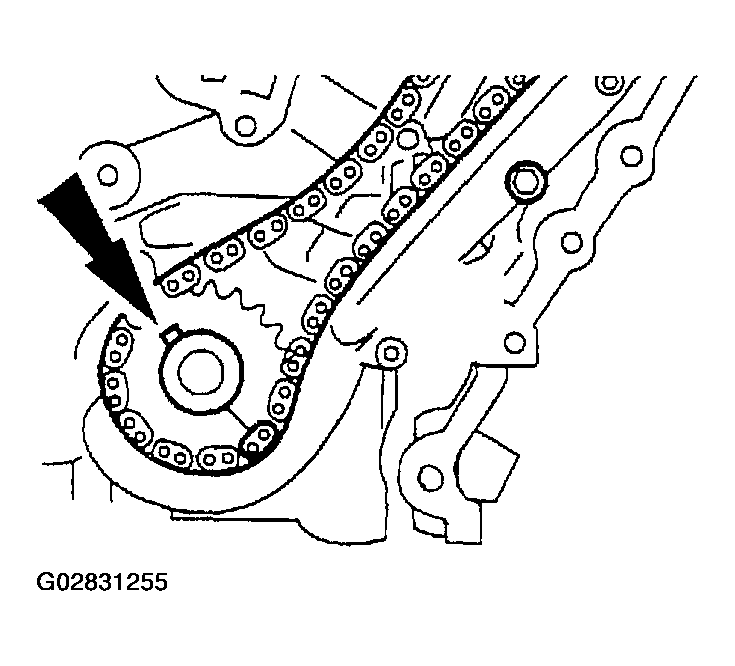

    Fig 1: Positioning Crankshaft Keyway In 11 O'clock Position
    G02831255Courtesy of MAZDA MOTORS CORP.
  2. Press and hold the tensioner piston by following Step 4 to 6 in Chain Tensioner (RH) Disassembly Note. (See CHAIN TENSIONER (RH) DISASSEMBLY NOTE .)
