Variable Valve Timing Actuator Assembly Note

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Mazda 6, 2007 Mazda 6, 2006 Mazda 6, 2005 Mazda 6, and 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the variable valve timing actuator using a new tightening bolt.
  2. Secure the camshaft sprocket in a vise using the SST  .

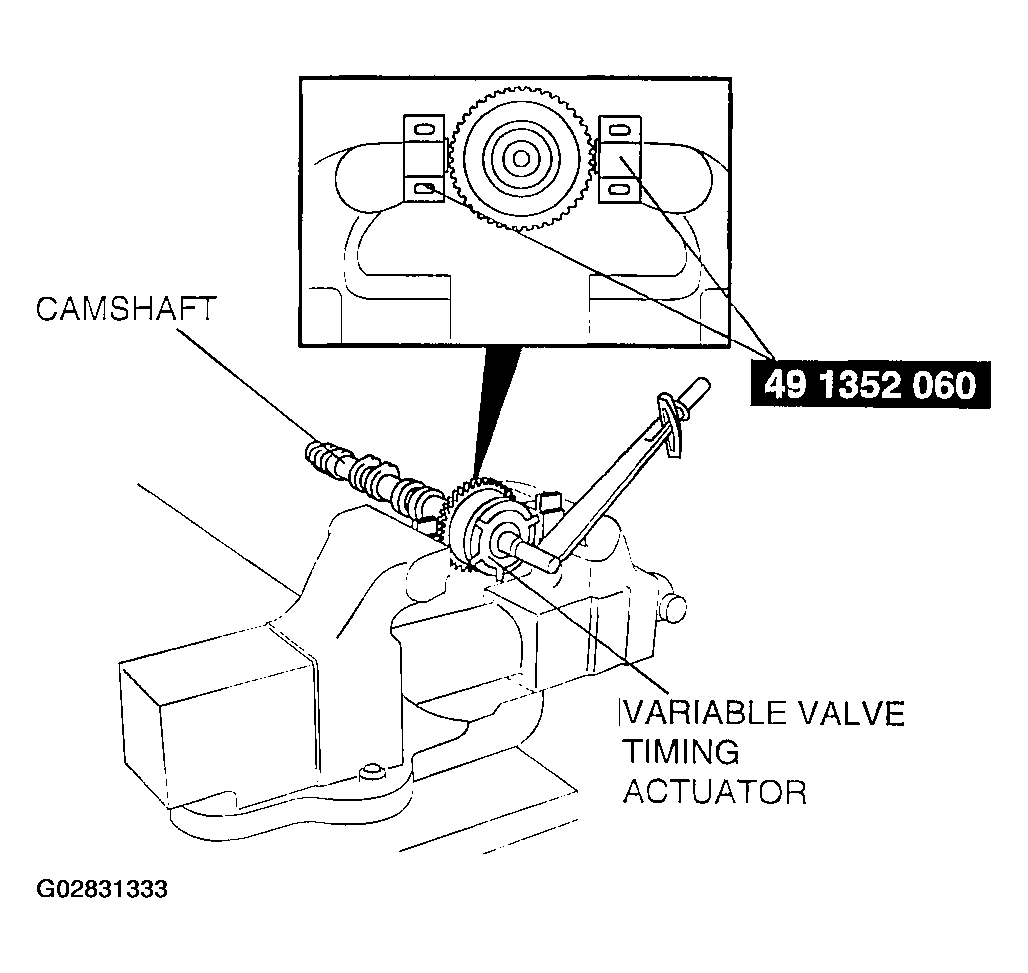

    Fig 1: Securing Camshaft Sprocket In A Vise
    G02831333Courtesy of MAZDA MOTORS CORP.
  3. Tighten the variable valve timing actuator tightening bolt in two steps.
    1. Tighten to 40 N.m {4.1 kgf.m, 29.5 ft.lbf}  .
    2. Tighten 90°  .
