Timing Chain (LH) Assembly Note

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Mazda 6, 2007 Mazda 6, 2006 Mazda 6, 2005 Mazda 6, and 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the timing chain (LH) by aligning the colored links on the timing chain (LH) with the marks on the timing sprockets.
    2. CAUTION:
    • Install the camshaft bearing thrust caps after installing the other bearing caps, or damage to the thrust caps may occur.

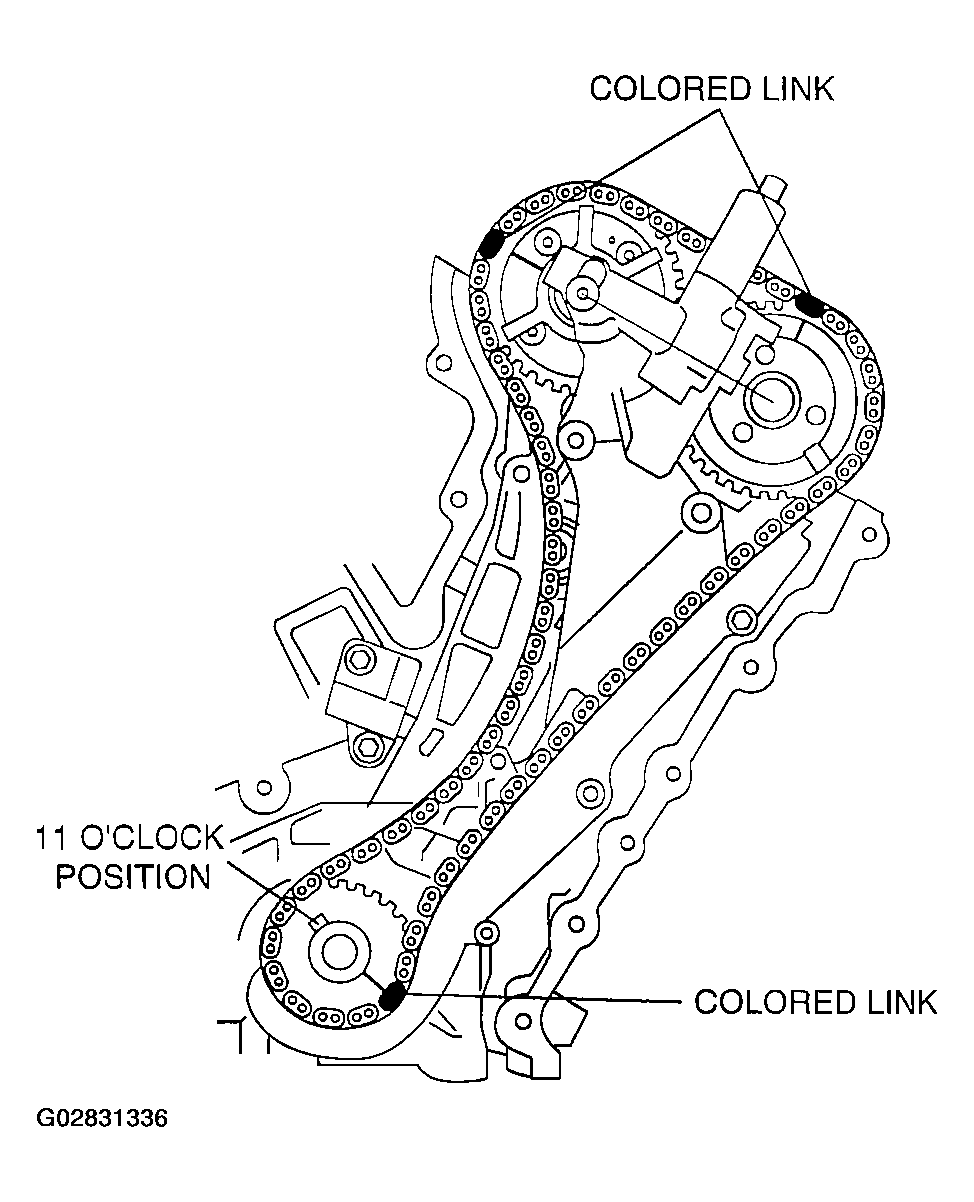

    Fig 1: Installing Timing Chain (LH)
    G02831336Courtesy of MAZDA MOTORS CORP.
  2. Align the camshaft end play using the camshaft bearing thrust caps 1L and 6L, and tighten the other bearing caps.
  3. Tighten the bearing caps in the order indicated in the figure in several passes.

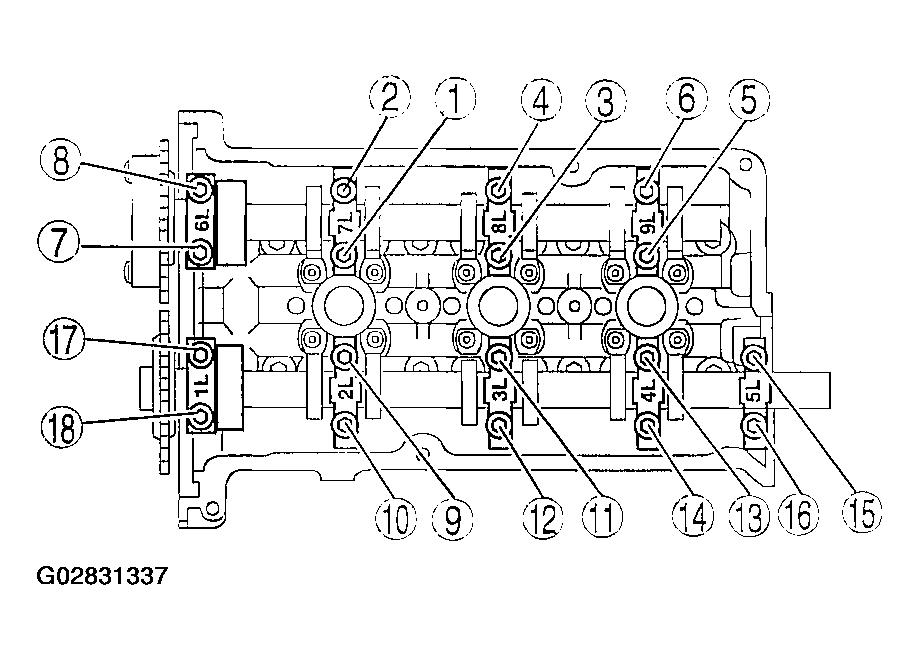

    Fig 2: Bearing Cap Bolt Tightening Sequence
    G02831337Courtesy of MAZDA MOTORS CORP.
