Oil Pan Assembly Note

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Mazda 6, 2007 Mazda 6, 2006 Mazda 6, 2005 Mazda 6, and 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply silicone sealant to the mating faces as indicated in the figure.

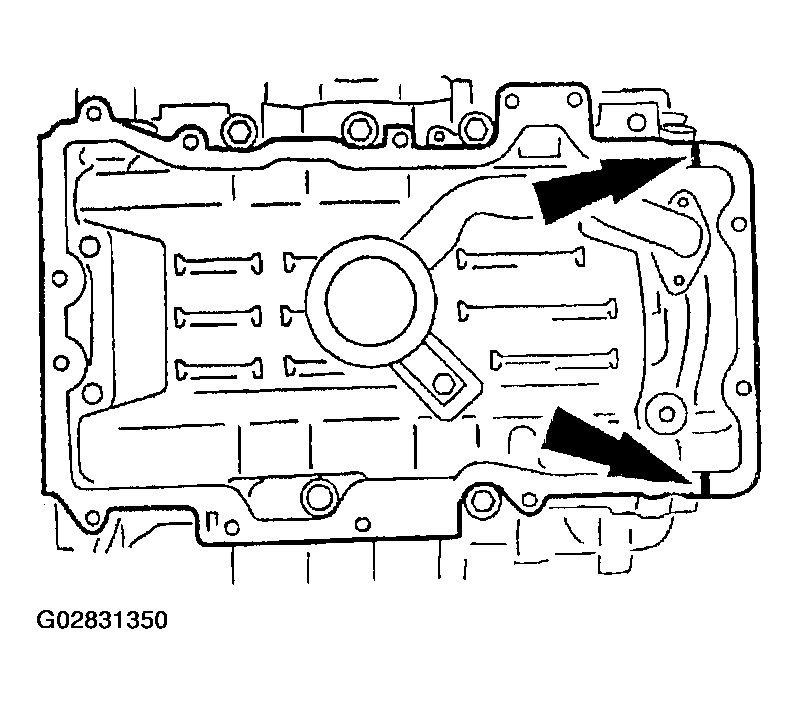

    Fig 1: Applying Silicone Sealant
    G02831350Courtesy of MAZDA MOTORS CORP.

    Dot Diameter

    10 mm {0.39 in}

  2. Install the oil pan with a new gasket.
  3. Install the bolts and studs as indicated in the figure.

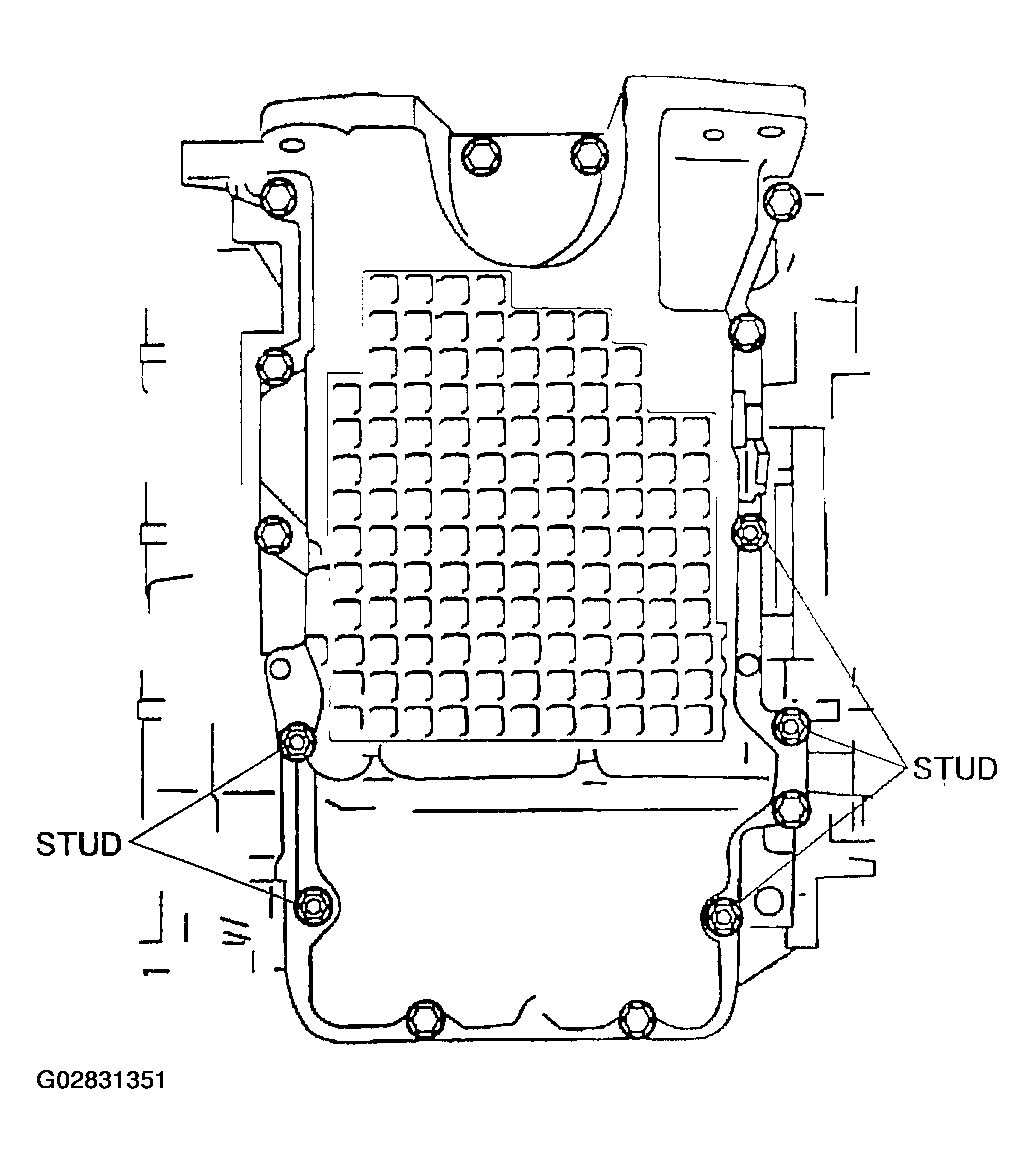

    Fig 2: Identifying Oil Pan Bolt & Stud Locations
    G02831351Courtesy of MAZDA MOTORS CORP.
  4. Align the cylinder block and the rear face of the oil pan using the straight edge.

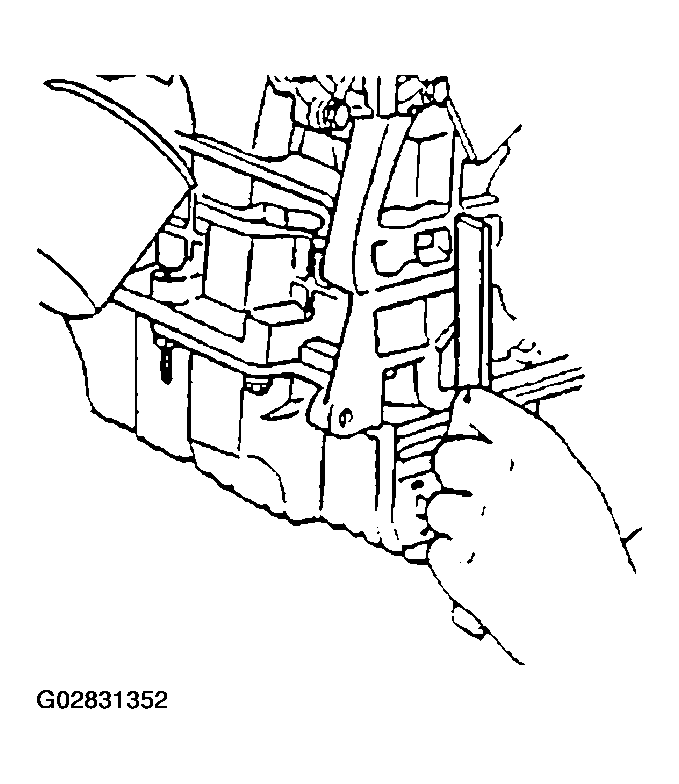

    Fig 3: Aligning Cylinder Block & Rear Face Of Oil Pan
    G02831352Courtesy of MAZDA MOTORS CORP.
  5. Tighten the bolts and studs in the order indicated in the figure.

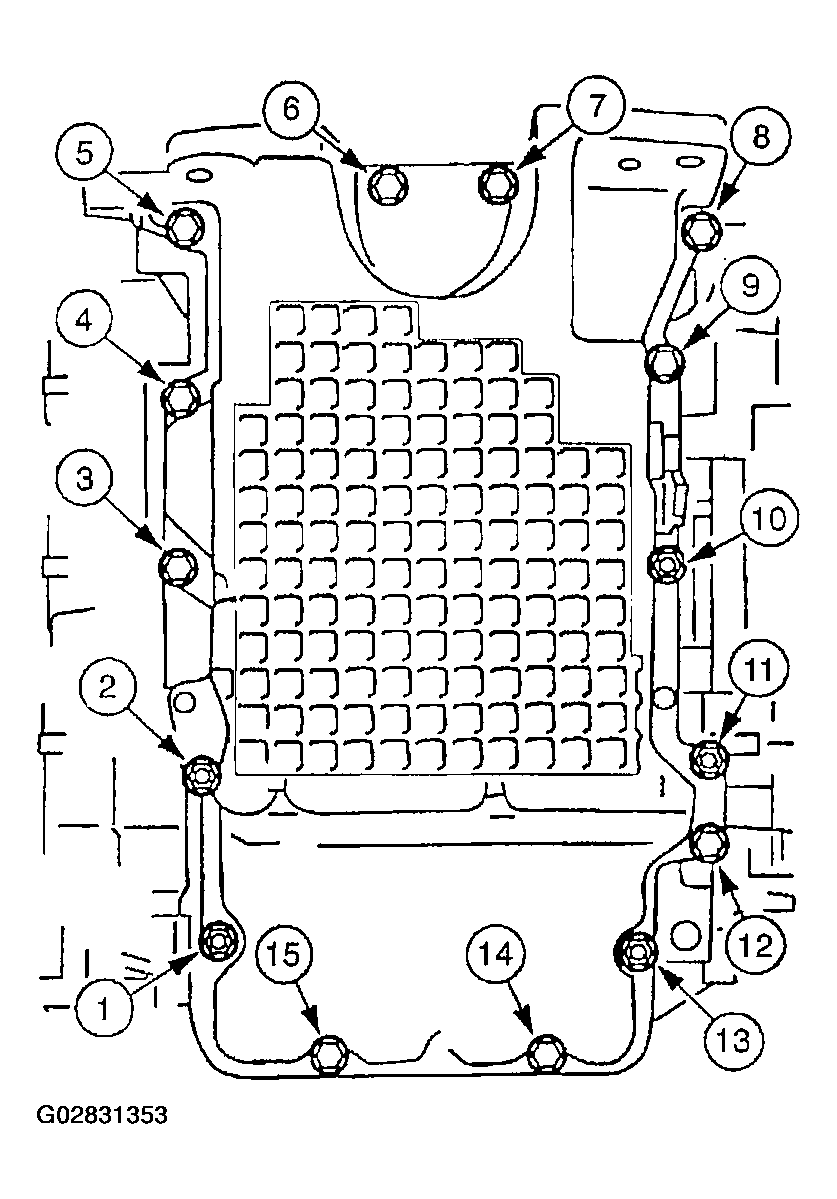

    Fig 4: Oil Pan Bolt & Stud Tightening Sequence
    G02831353Courtesy of MAZDA MOTORS CORP.
