Timing Chain Assembly: Notes

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Mazda 6, 2007 Mazda 6, 2006 Mazda 6, 2005 Mazda 6, and 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Assemble in the order indicated in the figure.

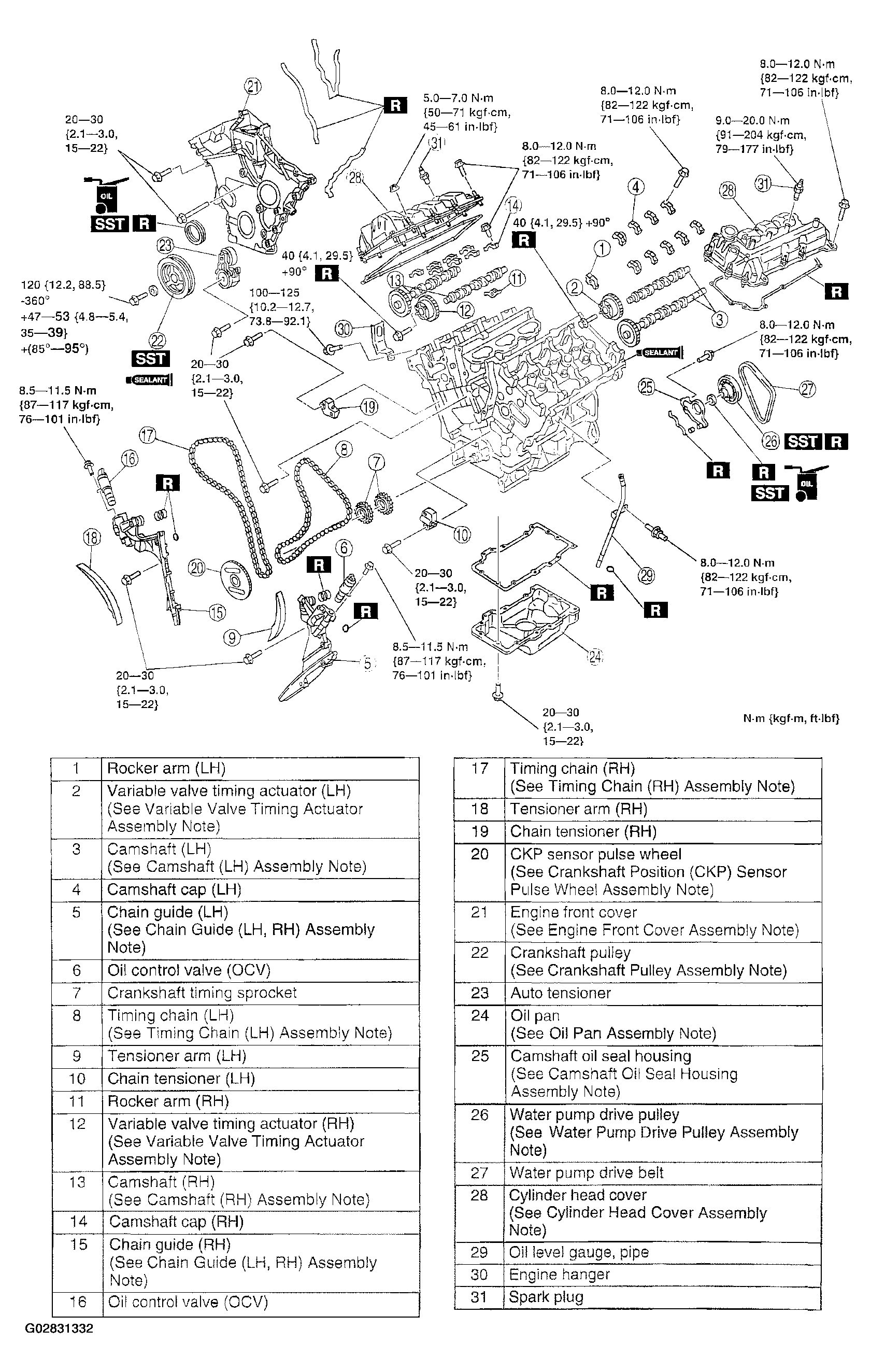

    Fig 1: Installing Timing Chains
    G02831332Courtesy of MAZDA MOTORS CORP.
