Crankshaft Pulley Assembly Note

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Mazda 6, 2007 Mazda 6, 2006 Mazda 6, 2005 Mazda 6, and 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using the silicone sealant, seal the keyway in the crankshaft pulley.
  2. Install the crankshaft pulley using the SST  and washer of crankshaft pulley lock bolt washer.

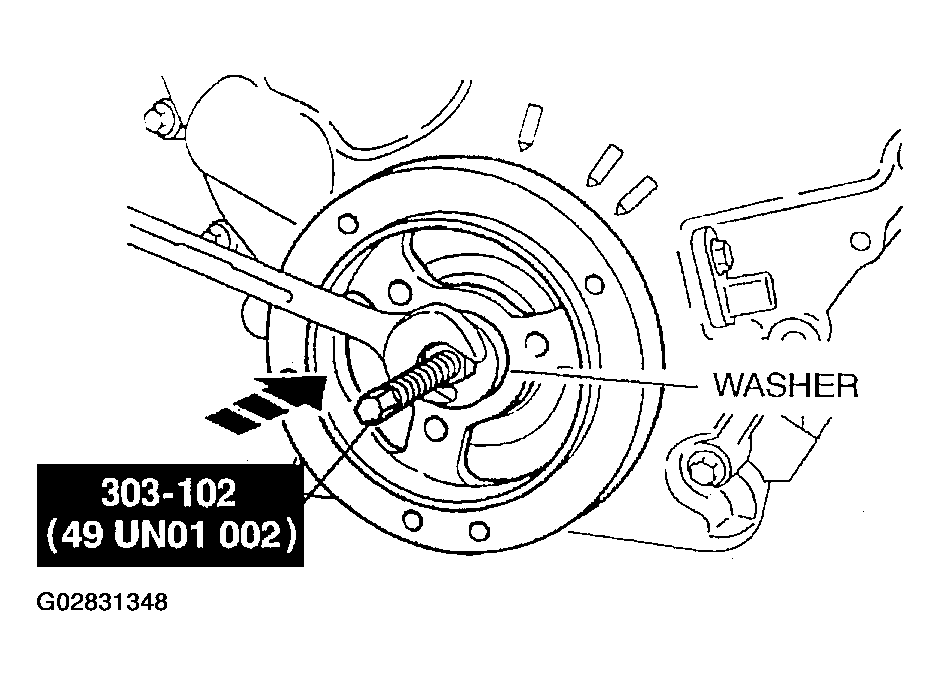

    Fig 1: Installing Crankshaft Pulley
    G02831348Courtesy of MAZDA MOTORS CORP.
  3. Hold the flywheel (MTX) or the drive plate (ATX) using the SST  .

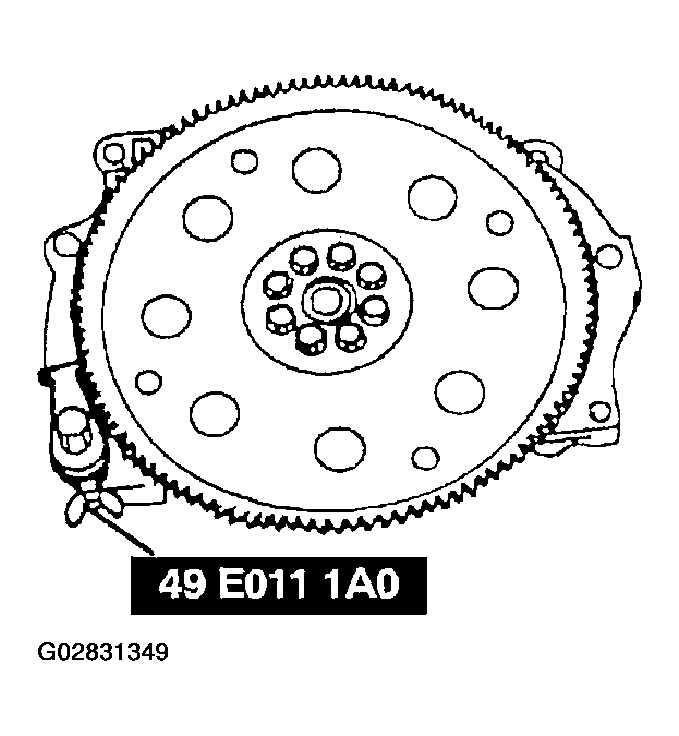

    Fig 2: Holding Flywheel (MTX) Or Drive Plate (ATX)
    G02831349Courtesy of MAZDA MOTORS CORP.
  4. Tighten the crankshaft pulley lock bolt in four steps.
    1. Tighten to 120 N.m {12.2 kgf.m, 88.5 ft.lbf}  .
    2. Loosen 360°  (one full turn) in reverse order.
    3. Tighten 47-53 N.m {4.8-5.4 kgf.m, 35-39 ft.lbf}  .
    4. Tighten 85°-95°  .
