Camshaft Oil Seal Housing Assembly Note

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Mazda 6, 2007 Mazda 6, 2006 Mazda 6, 2005 Mazda 6, and 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply clean engine oil to the oil seal.
  2. Install the camshaft oil seal using the SSTs  .

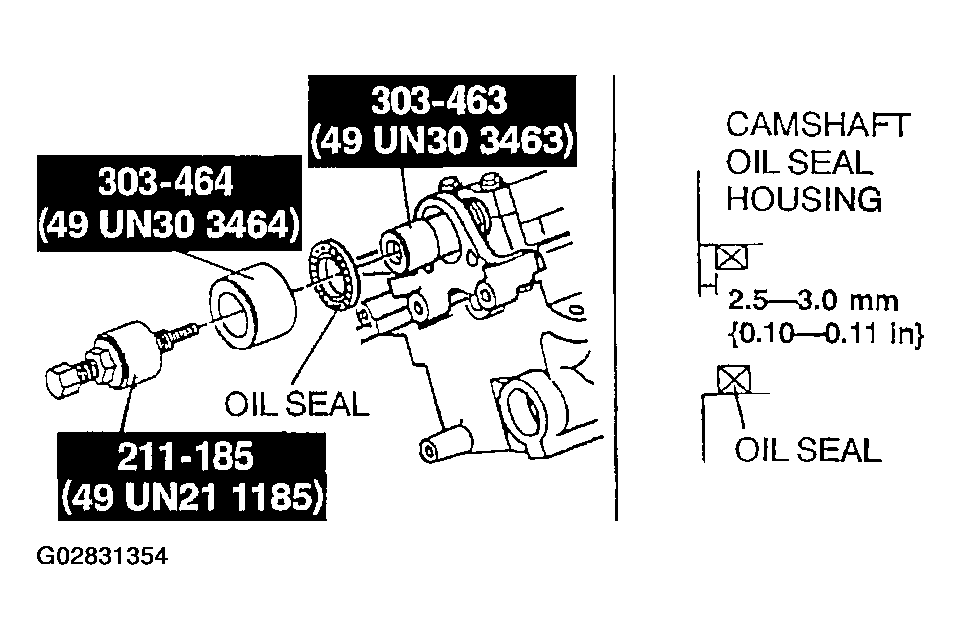

    Fig 1: Installing Camshaft Oil Seal
    G02831354Courtesy of MAZDA MOTORS CORP.
