Engine Technical Data

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Mazda 6, 2007 Mazda 6, 2006 Mazda 6, 2005 Mazda 6, and 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

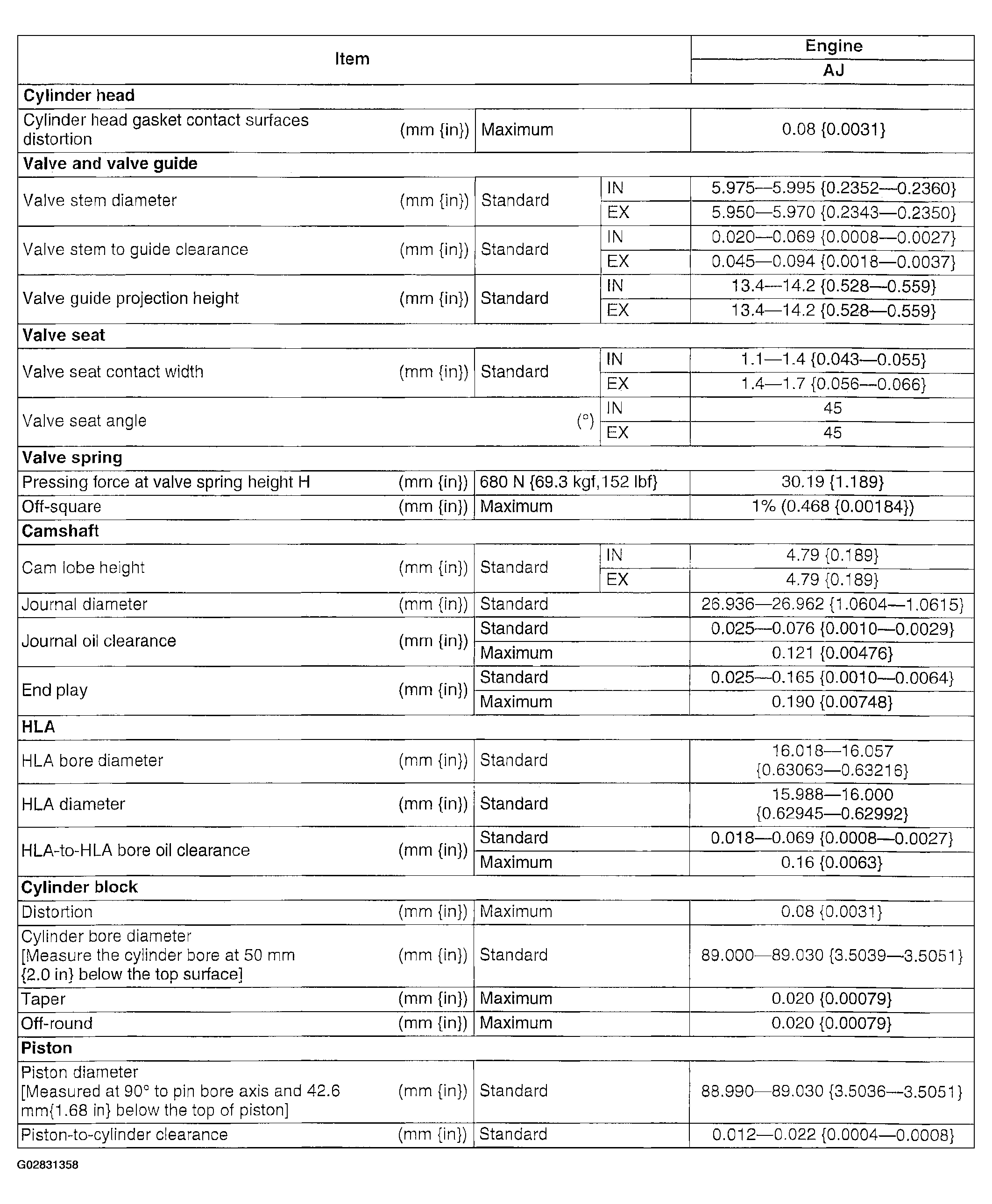

Fig 1: Engine Technical Data (1 Of 3)

Courtesy of MAZDA MOTORS CORP.

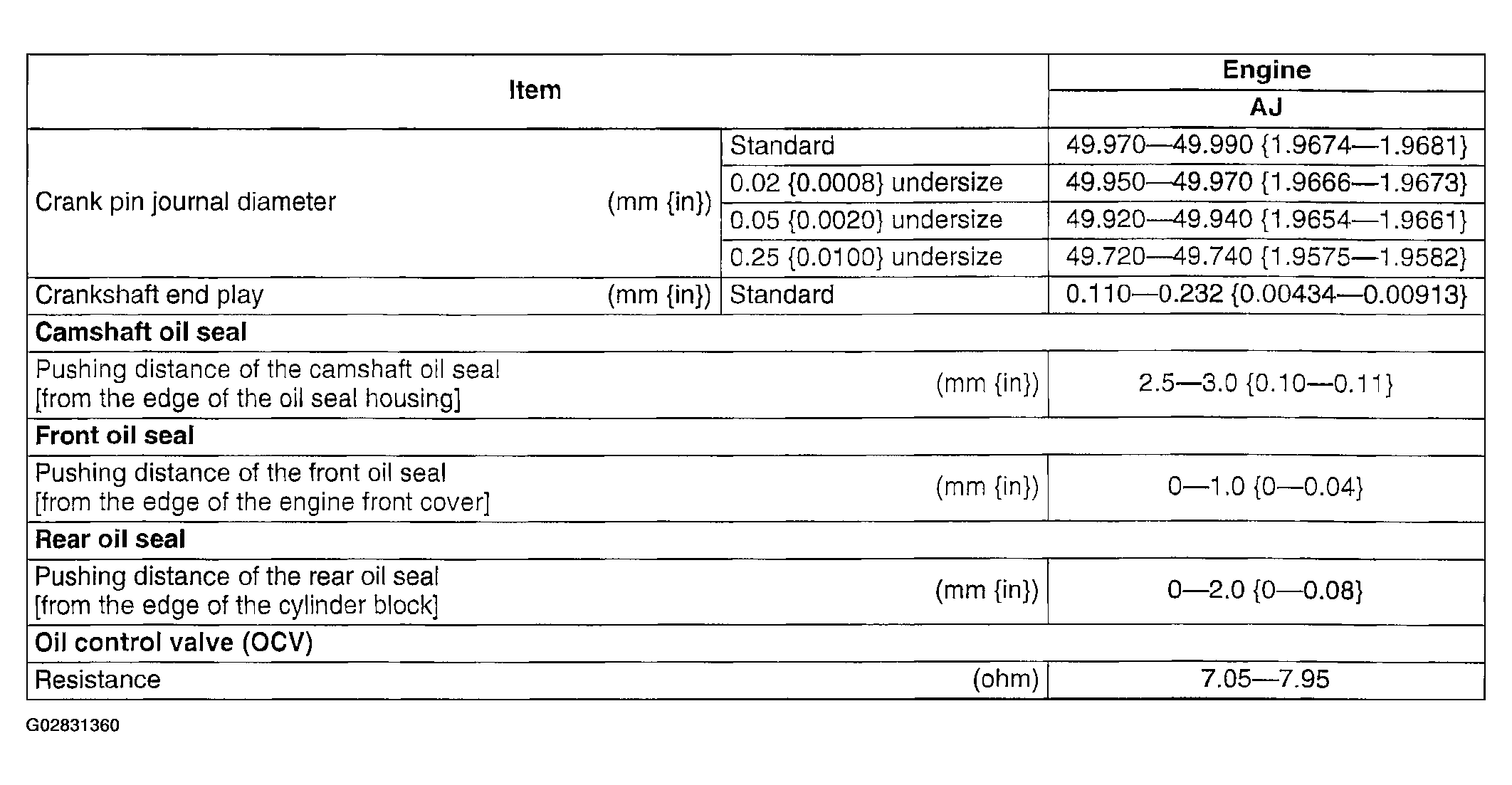

Fig 2: Engine Technical Data (2 Of 3)

Courtesy of MAZDA MOTORS CORP.

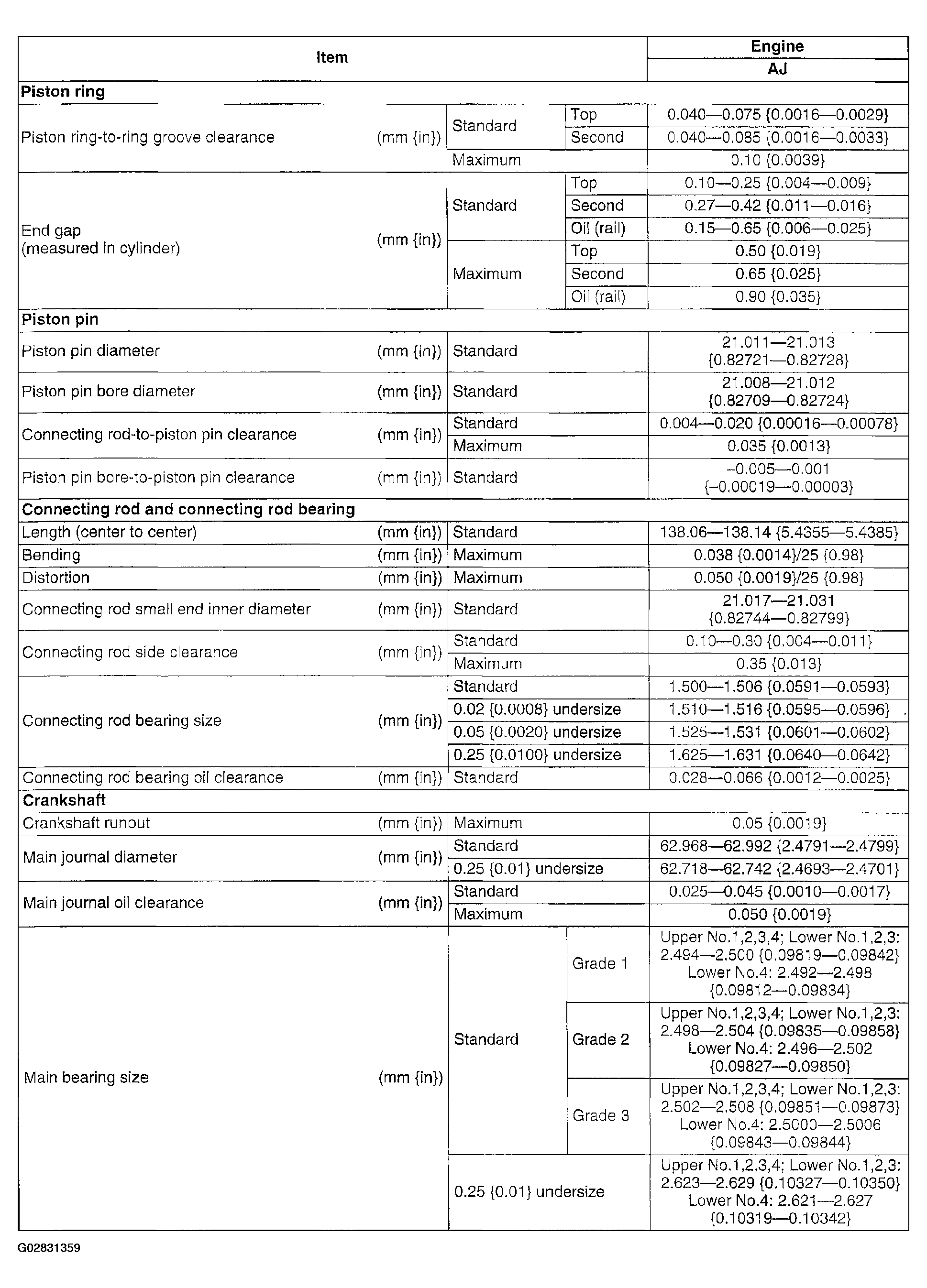

Fig 3: Engine Technical Data (3 Of 3)

Courtesy of MAZDA MOTORS CORP.
