Engine Mounting
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Mazda 6, 2007 Mazda 6, 2006 Mazda 6, 2005 Mazda 6, and 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

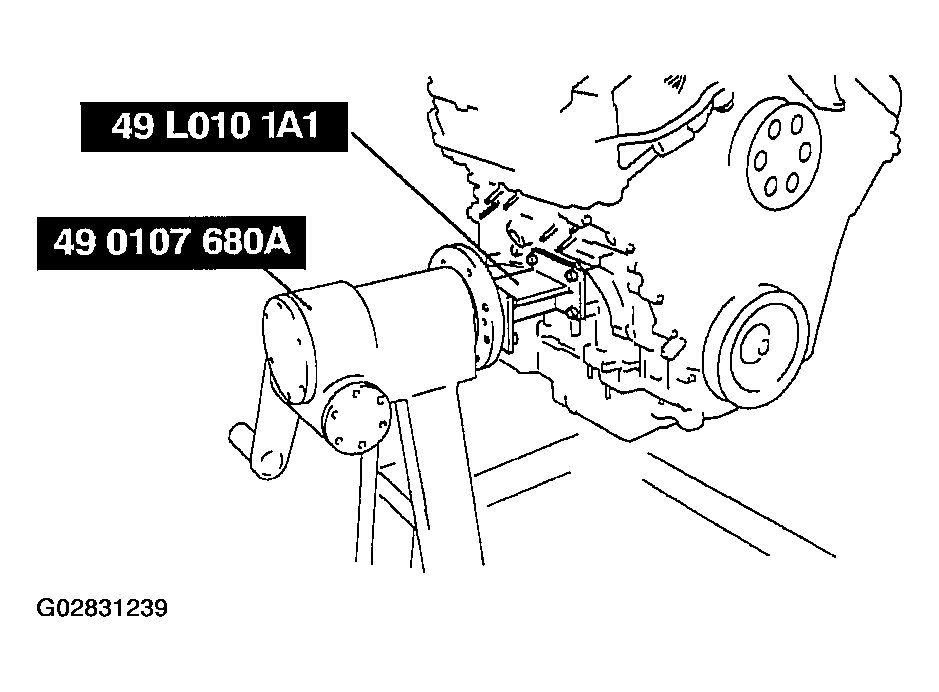

- Install the SST (engine hanger) to the cylinder block holes as indicated in the figure, and tighten the SSTs (bolts).
- Mount the engine on the SST (engine stand).
- Drain the engine oil into a container.
- Inspect the seal rubber of the oil pan drain plug and make sure there are no cracks or damage.
- If necessary, replace the oil pan drain plug.
- Clean the flange surface (seal rubber) of the drain plug, then install the plug.
Tightening Torque
22-30 N.m {2.2-3.1 kgf.m, 16-22 ft.lbf}
