Cylinder Head Disassembly (II): Notes
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Mazda 6, 2007 Mazda 6, 2006 Mazda 6, 2005 Mazda 6, and 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

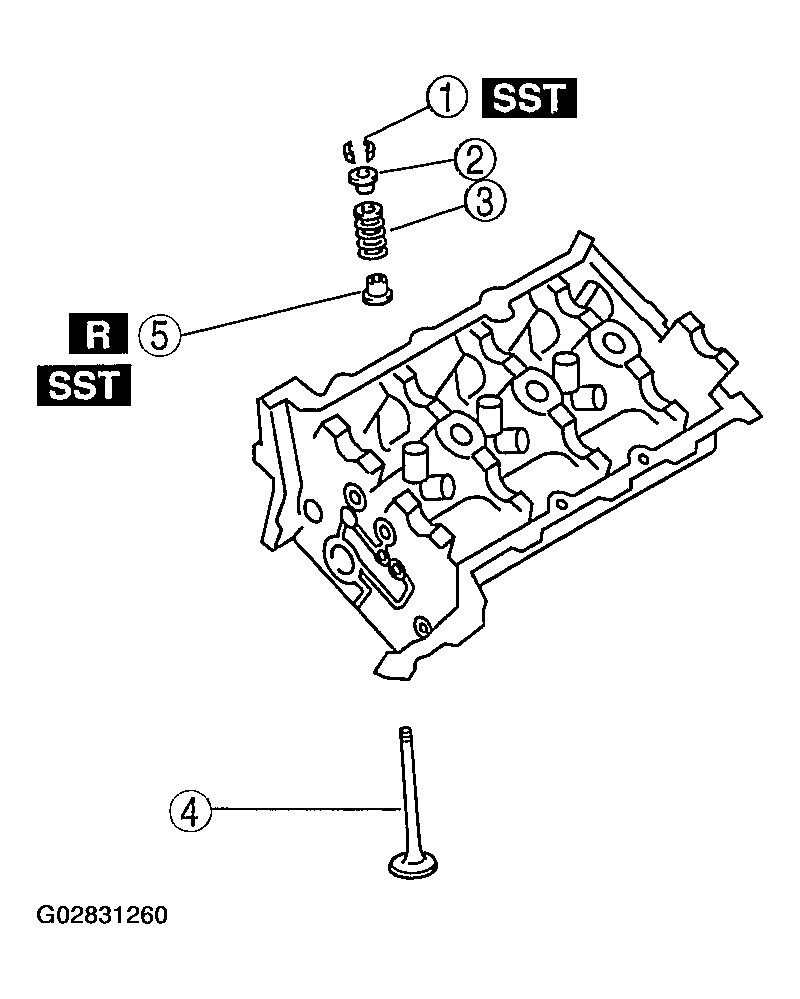

- Disassemble in the order indicated in the table/figure.CYLINDER HEAD DISASSEMBLY (II)
Component/Step No. Component Description 1 Valve Keeper (See VALVE KEEPER DISASSEMBLY NOTE ) 2 Upper Valve Spring Seat 3 Valve Spring 4 Valve 5 Valve Seal (See VALVE SEAL DISASSEMBLY NOTE )
