Water Pump Assembly Note

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Mazda 6, 2007 Mazda 6, 2006 Mazda 6, 2005 Mazda 6, and 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install new bolts and tighten them in two steps.
    1. Tighten to 10.0 N.m {102 kgf.cm, 88.5 in.lbf}  .
    2. Tighten 85°-95°  .

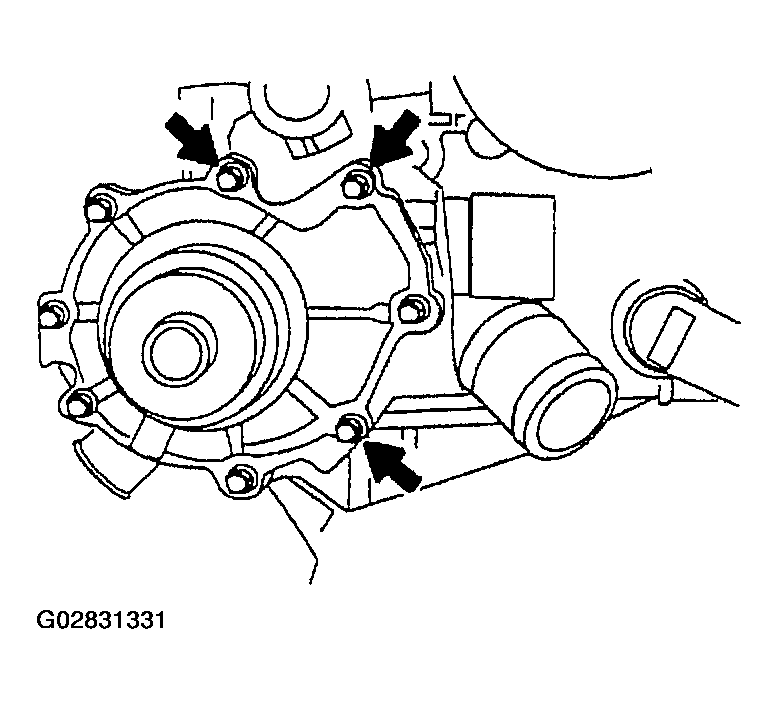

      Fig 1: Installing Water Pump
      G02831331Courtesy of MAZDA MOTORS CORP.
